CONSEW 199R-3A-1 FOUR STEP Lockstitch Zig Zag Sewing Machine | Regular Bobbin

QUICK OVERVIEW

FOUR STEP Lockstitch Zig Zag Sewing Machine with Regular Size Bobbin

$3,495.00

Shipping Options

Please choose a shipping method.

Product price: $3,495.00
Total options:
Order total:

Description

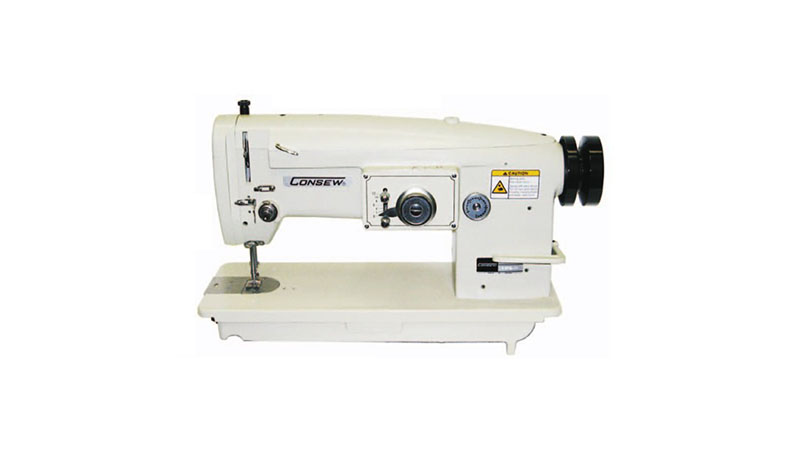

CONSEW 199R-3A-1 FOUR STEP Lockstitch Zig Zag Sewing Machine | Regular Bobbin



199R 2A 1



Machine Brand MACHINE BRAND:

CONSEW Industrial Sewing Machines

Sewing Machine Model MACHINE MODEL:

CONSEW 199R-3A-1

Sewing Machine Description MACHINE DESCRIPTION: Single Needle, Drop Feed, Zig-Zag, Lockstitch Machine

With: Horizontal Axis Transverse Rotary Hook, Reverse Feed, Combination Zig-Zag and Straight Stitcher

Applications

  • Four step/three stitch zig-zag
  • For sewing elastic and other stretch materials, as well as for ornamental stitching
  • For stitching such products as boat and truck covers, tents, awnings sails, parachutes, tarapaulins, canvas bags, also many items of military and naval equipment
  • Used on such materials as canvas, nylon, vinyl, leather, synthetics and similar materials
  • Especially desierable where reinforced stitch is necessary
  • Also available with special fittings for rope tacking operations
  • Used for rope tacking, making loops in rope and attaching small and medium size ropes to such products as truck covers, tents, sails, hammocks, parachutes, grain bags and many items of military and naval equipment

Features

  • Horizontal axis transverse rotary hook
  • Maximum width of zig-zag: 3/8″ (9.5mm)
  • Straight stitcher when zig-zag is set to ‘O’ mm
  • Long arm with 10″ free space between needle and arm (all 18 7/8″ bed models)
  • Locking zig-zag width regulator
  • Reverse stitching
  • Added advantage of making an additional stitch for extra reinforcement
  • Optional: Interchangable between 1A, 2A & 3A stitches; Additional parts required (not included)



Techical Specifications TECHNICAL SPECS:
Standard or Full Function Standard Functions
Needle 16 x 95
Workspace Standard Workspace
Hook B-70
Feeding Mechanism Needle Feed
Work Space 10″ (258mm)
Clearence Under Presser Foot 15/64″ (6mm)
Stitch Length 5 s.p.i. (5mm)
Zig-Zag Stitch Width 3/8″ (9.5mm)
Bed Size 7 x 18 7/8″ (178mm x 480mm)
Number of Needles 1 (Single)
Needle Bar Stroke 1 11/32″ (34mm)
Bobbin Metal B75
Pre-wound L
Speed, Max (S.P.M.) Zig-Zag 3000
Straight 3200
Sewing Machine Setup MACHINE SETUP:

This machine ships complete and fully assembled – ready to sew upon arrival.

It includes:

  • Machine Head
  • Table Top
  • Heavy Duty Stand
  • SERVO Motor
  • LED Light
  • Thread Stand
  • Manuals
  • Extra needles, bobbins, and tools.



Sewing Machine Voltage MOTOR & VOLTAGE: This machine is equiped with a SERVO motor operating on standard 110 Volts power.
Sewing Machine Warranty WARRANTY: 1 Year Warranty
Sewing Machine Sale Price SALE PRICE: $3,495.00 – Complete and FULLY ASSEMBLED
Sewing Machine Shipping Cost SHIPPING COST: Commercial / Business Address = $240.00

Home / Residential Address = $295.00

Delivery Time DELIVERY TIME: If in stock, 10 to 14 days delivery time.
icon pdf MACHINE BROCHURE: N/A
Sewing Machine Parts Manual PARTS MANUAL: N/A

Additional information

Weight 9999 oz
