USED CONSEW 733R-2 Extra Heavy Duty 7 Class Walking Foot Sewing Machine for Thick Leather, Webbing and Synthetic Materials


7 Class Extra Heavy Duty Walking Foot Sewing Machine



Out of stock

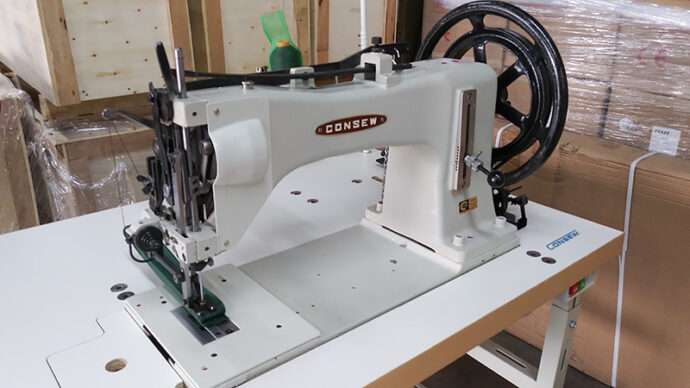

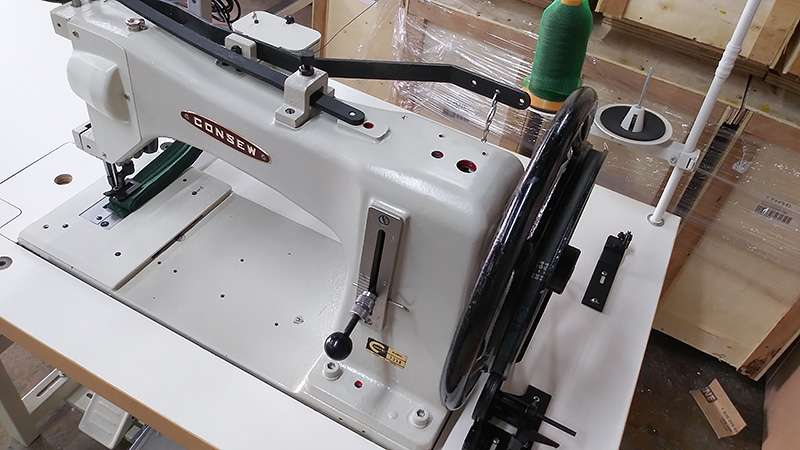

CONSEW 733R Extra Heavy Duty 7-Class Walking Foot Sewing Machine.

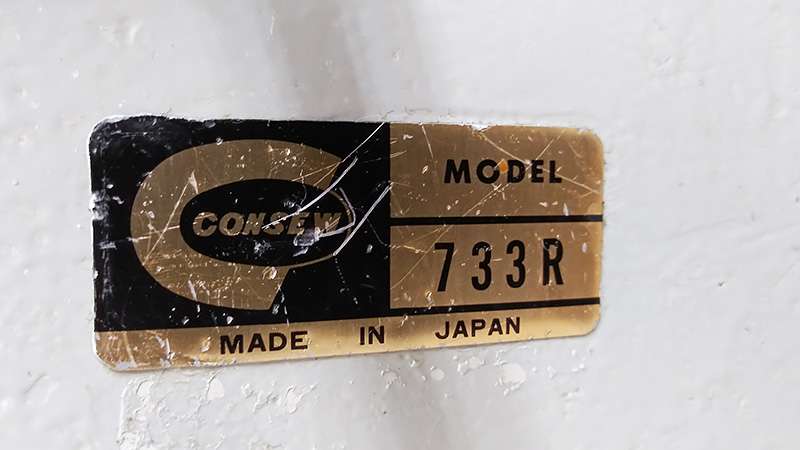

*Made in Japan*

Machine Brand MACHINE BRAND:

CONSEW Industrial Sewing Machines

Sewing Machine Model MACHINE MODEL:


Sewing Machine Description MACHINE DESCRIPTION:

Extra Heavy Duty, Single Needle, Drop Feed, Alternating, Presser Feet, Lockstich Machine.

With: Extra Large, Long Beak, Oscillating Shuttle Hook and Bobbin, Extra High Foot Lift – (1-1/4″ / 32mm), Reverse Feed

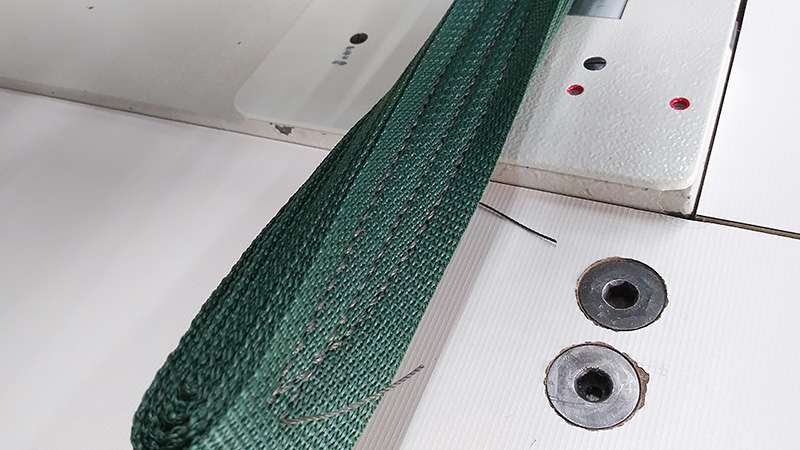

  • For stitching extra heavy-weight materials
  • Designed for such operations and products as safety and logging belts, cargo slings, buffing wheels, tents, sails, harnesses, tarpaulins and covers, fabric structures, construction barriers, parachutes, balloons, industrial bags, boot stitching, book binding


  • Synchronized upper and lower feeding mechanism assures uniform stitching

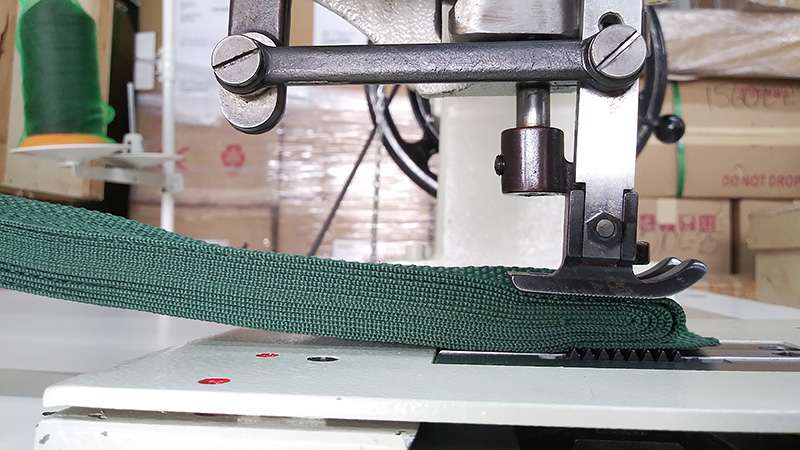

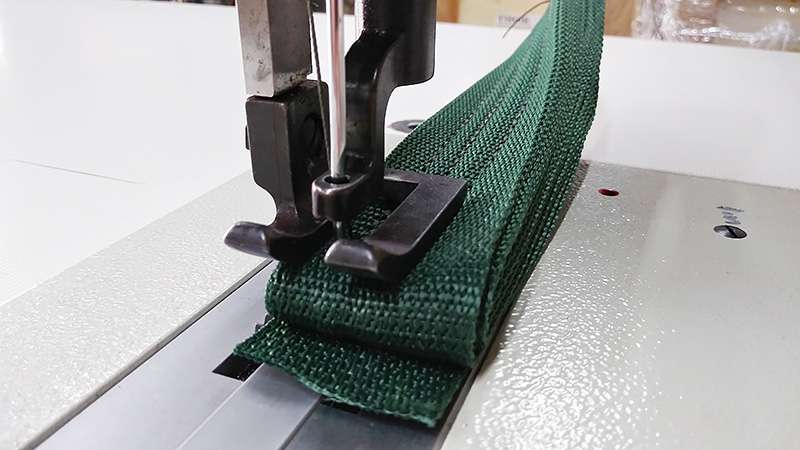

  • Alternating presser feet
  • Steel insert for take-up hinge
  • Reverse stitching – hand or foot operated
  • Stitch regulator – hand or foot operated
  • Presser foot lift – hand or foot operated
  • 1-1/4 inch presser foot lift
  • Two stitches to the inch
  • Stitches per minute – 550

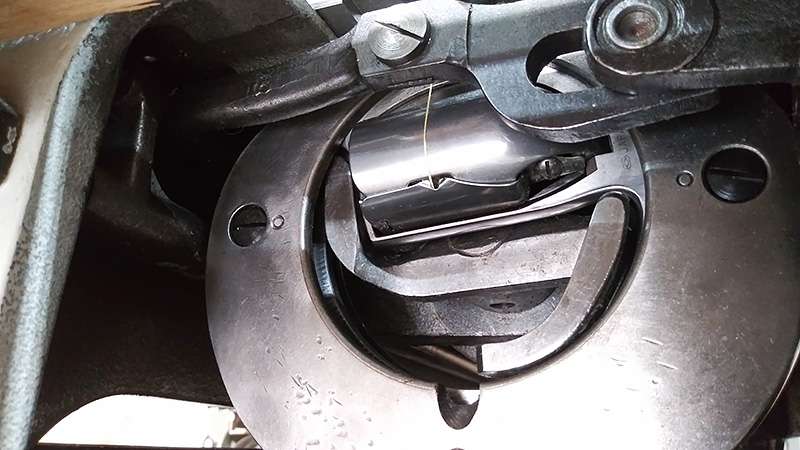

  • Extra large, long-beak oscillating shuttle, hook and bobbin
  • Belt guard
Techical Specifications TECHNICAL SPECS:
Standard or Full Function Standard Functions
Needle 1000 or 1000H
Workspace Standard Workspace
Hook Size Large
Hook 35224
Feeding Mechanism Walking Foot
Work Space 16 1/4″ (413mm)
Clearance Under Presser Foot 1 1/4″ (32mm)
Gross Weight 348 lbs. (158 kgs)
Stitch Type 301
Stitch Length 2 s.p.i. (13mm)
Bed Size 10″ x 26 1/4″ (258mm x 665mm)
Number of Needles 1 (Single)
Needle Bar Stroke 2 3/32″ (53mm)
Bobbin Barrel Shuttle Type
Speed, Max (S.P.M.) 550
Sewing Machine Setup MACHINE SETUP:

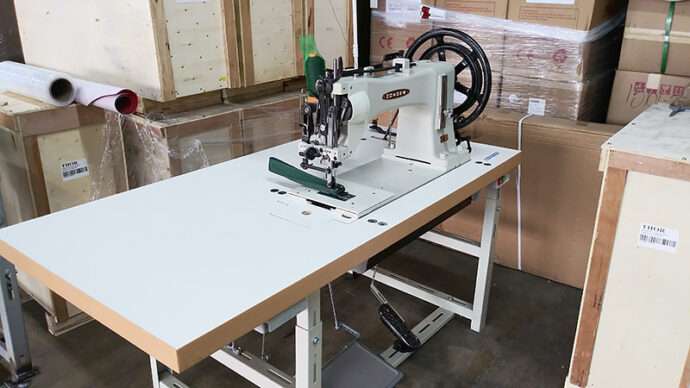

This machine ships complete and fully assembled Рready to sew upon arrival.

It includes:

  • Machine Head
  • Table Top
  • Heavy Duty Stand

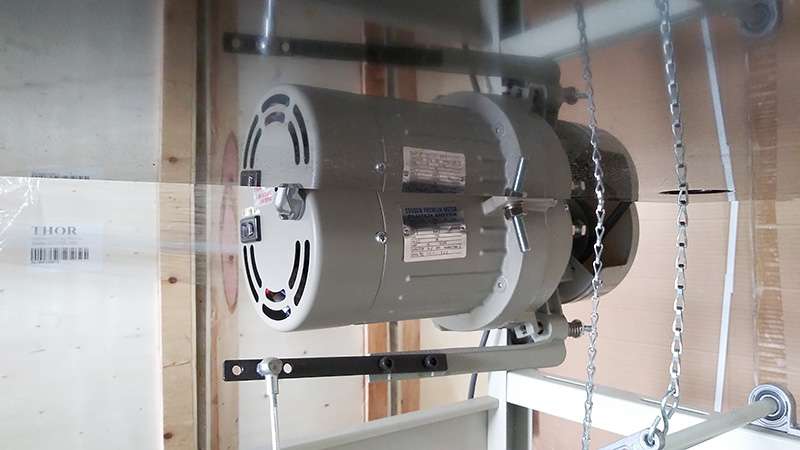

  • CLUTCH Motor (110 Volts)
  • Thread Stand
  • Extra needles & bobbins


Sewing Machine Voltage MOTOR & VOLTAGE: This machine is equipped with a CLUTCH motor operating on standard 110 Volts power.
Sewing Machine Warranty WARRANTY: 90 Days Warranty
Sewing Machine Sale Price SALE PRICE: $4,250.00 – Complete and FULLY ASSEMBLED
Delivery Time DELIVERY TIME: 7 to 14 Days Delivery Window
Sewing Machine Parts Manual PARTS MANUAL: N/A






Additional information

Weight 9999 oz
