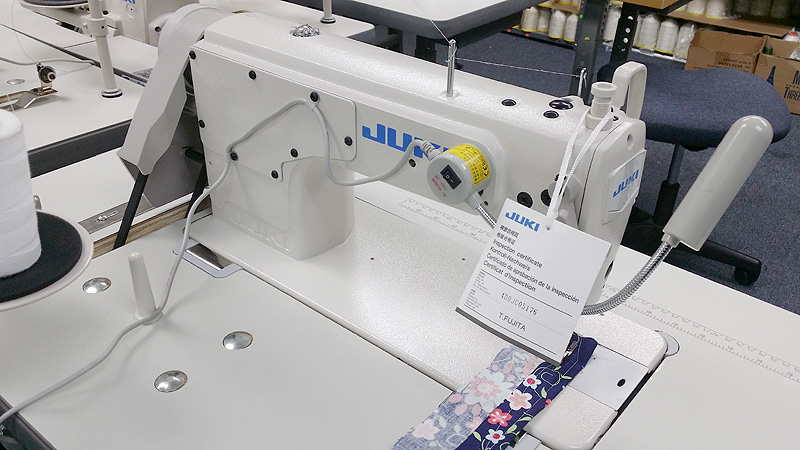

DDL-8100E

By thoroughly investigating and modifying the sewing mechanisms in order to achieve low-tension sewing, the machine flexibly responds to various kinds of materials and produces beautiful seams of consistent quality.

By adopting a machine frame structure designed to obtain optimal balance and upgrade strength and rigidity, the machine runs with reduced vibration and noise.

By providing a presser foot with a higher lift(13mm), a light-touch stitch dial, and other easy-to-operate functions, the burden on the operator is lightened, and productivity is further increased.

The hand pulley has been designed to contain a deep recess to allow the operator to hold the pulley firmly and turn it with ease.

The Juki DDL8100e is provided as standard with extra attachment mounting seats for attachment of new auxiliary parts in the future. The extremely high durability of the seats ensures an extended service with frequent replacement of attachments.

The head mounting hinge is located to prevent materials from being caught by it, thereby improving workability.

The JUKI DDL-8100e is the best value for designers, home sewers, contactors, alteration shops as well as high volume production factories.

• APPLICATION:  Light To Medium-Weight Fabrics
• MAX SEWING SPEED:  4,500 SPM (Stitches Per Minute)
• MAX STITCH LENGTH:  5 mm
• NEEDLE BAR STROKE:  30.7 mm
• FOOT LIFT:  13 mm by Knee, 5.5 mm by Hand
• NEEDLE:  Type DB x 1   Sizes 9 to 18 (recommended size:  14)
• FEED DOG:  3 Row
• HOOK:  Automatic-Lubricating Full-Rotary Hook
• LUBRICATION:  Automatic

It includes:

• Machine Head
• Table Top
• Heavy Duty Stand
• SERVO Motor
• Thread Stand
• LED Light
• Manuals
• Extra needles, bobbins, and tools.
