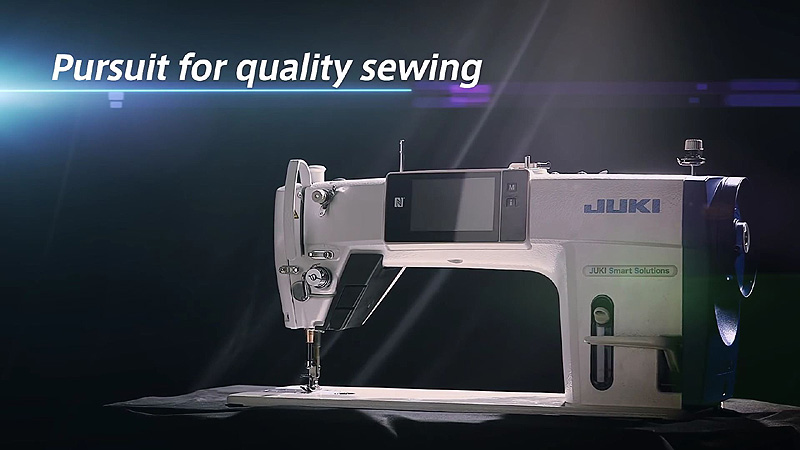

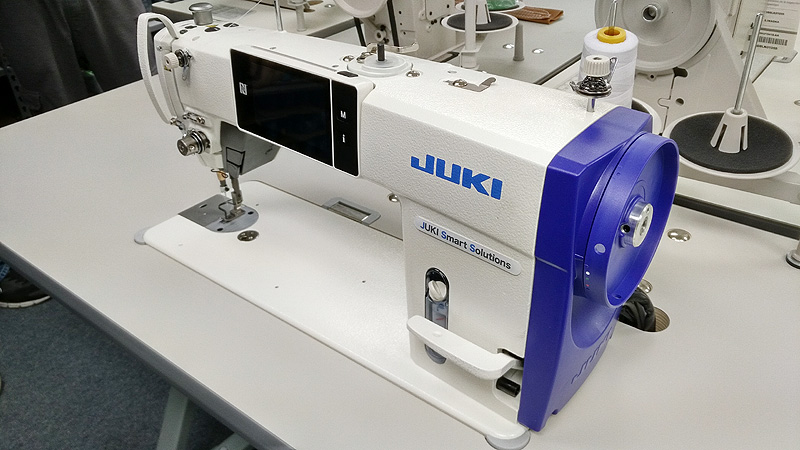

Name: JUKI DDL-9000C-FMSNB Full Digital Automatic Single Needle Lockstitch Sewing Machine
SKU: 370
Price: 2495.00 USD
Availability: InStock

Description

JUKI DDL-9000C-FMSNB Full Digital Automatic Single Needle Sewing Machine

The latest in function and technology!

Full Digital Controls
Digital Thread Tension Control
Digital Foot Pressure Control
Sewing Parameter Setting, Saving and Recall
Automatic Thread Trimmer
Automatic Back Tack Settings
Automatic Foot Lift
4.3″ Full Color Touch-Screen Digital Control Panel

JUKI DDL-9000C Digital Sewing Machine

MACHINE BRAND:

MACHINE MODEL:

DDL-9000C-FMSNB-AA

MACHINE DESCRIPTION:

Commitment to “seam quality”is poised to enter a new era with JUKI ’s next-generation sewing system.

The change is driven by digitalization. Until recently, sewing machines have been adjusted by human operators based on personal hunches and experience.
Now, with JUKI’s digital sewing system DDL-9000C, sewing machine adjustments are fully digitalized. The settings can be reproduced with total accuracy to perfectly suit the materials being sewn.

Needle thread tension which matches sewing conditions given can be set on the operation panel and stored in memory. The needle thread tension adjustment needs experience. However, for this sewing machine, thread tension data stored in memory is reproducible, thereby reducing the setup time when the product to be sewn is changed.Exampl e : Needle-thread active tension demonstrates its effectiveness in the topstitching process. For welting shoulders of a difficult-to-sew material, uniform stitches can be produced continuously by appropriately changing the sewing conditions even if the right and left material fabric differ in texture grain.

TECHNICAL SPECS:

Machine Specifications

Application	Medium-weight
Max. Sewing Speed	5,000 Stitches per Minute
Max. Stitch Length	5 mm
Needle Bar Stroke	30.7 mm
Lift of the Presser Foot – by Hand	5.5 mm
Lift of the Presser Foot – Auto	15 mm
Needle	DBx1 (#11) #9 to #18 Capable
Feed Dog	4-row
Hook	Automatic-Lubricating Full-Rotary Hook
Lubrication	Automatic
Lubricating Oil	Juki Machine Oil 7 (Equivalent to ISO VG7)
Control Box	Integrated
Power Requirement	Single-Phase 100~240V, 3-phase 200~240V
Power Consumption	520VA
Total Shipping Weight – Assembled	240 lbs
