Single Needle Chain Stitch Sewing Machine

Description

JUKI MH-481 Single Needle Chain Stitch Sewing Machine

JUKI MH-481



Machine Brand MACHINE BRAND: JUKI Industrial Sewing Machines
Sewing Machine Model MACHINE MODEL:

MH-481

Sewing Machine Description MACHINE DESCRIPTION: The JUKI MH-481 is a single needle chainstitch sewing machine designed to sew beautiful, even chain stitching on multiple fabric types and is most widely used for:

  • attaching yokes on the back of men’s shirts
  • attaching waist belts, joining sides, seam insides and hip seams on slacks, pantaloons and ski pants
  • sewing the center of the back of coats and blazers
  • joining sides, sewing sleeves, belts, collars, and front facings on coats and blazers
  • sewing the center and joining sides on skirts
  • making pleats or gathers on one-piece suits, blouses and negligees
  • sew sides and sew interlining on the inside side of the material of uniforms and jumpers
  • making pleats and gathers on interior decorations

The machine comes with a thread spreading mechanism and an adjustable needle guard to prevent stitch skipping. The thread clamp mechanism, tension release mechanism and needle thread draw-out mechanism enable the machine to leave thread of a uniform length after thread trimming, and prevent slip-off of the needle thread. All of these mechanisms contribute to upgraded sewing.

The machine comes in different classes with varying functions:

  • MH-481 Standard Bottom Feed Chain Stitch Machine
  • MH-481-5(4) Standard Bottom feed Chain Stitch Machine with Automatic Thread Trimmer
  • MH-484 Differential Feed Chain Stitch Machine
  • MH-484-5(4) Differential Feed Chain Stitch Machine with Automatic Thread Trimmer
  • MH-486-5(4) Bottom and Variable Top Feed Chain Stitch Machine with Automatic Thread Trimmer

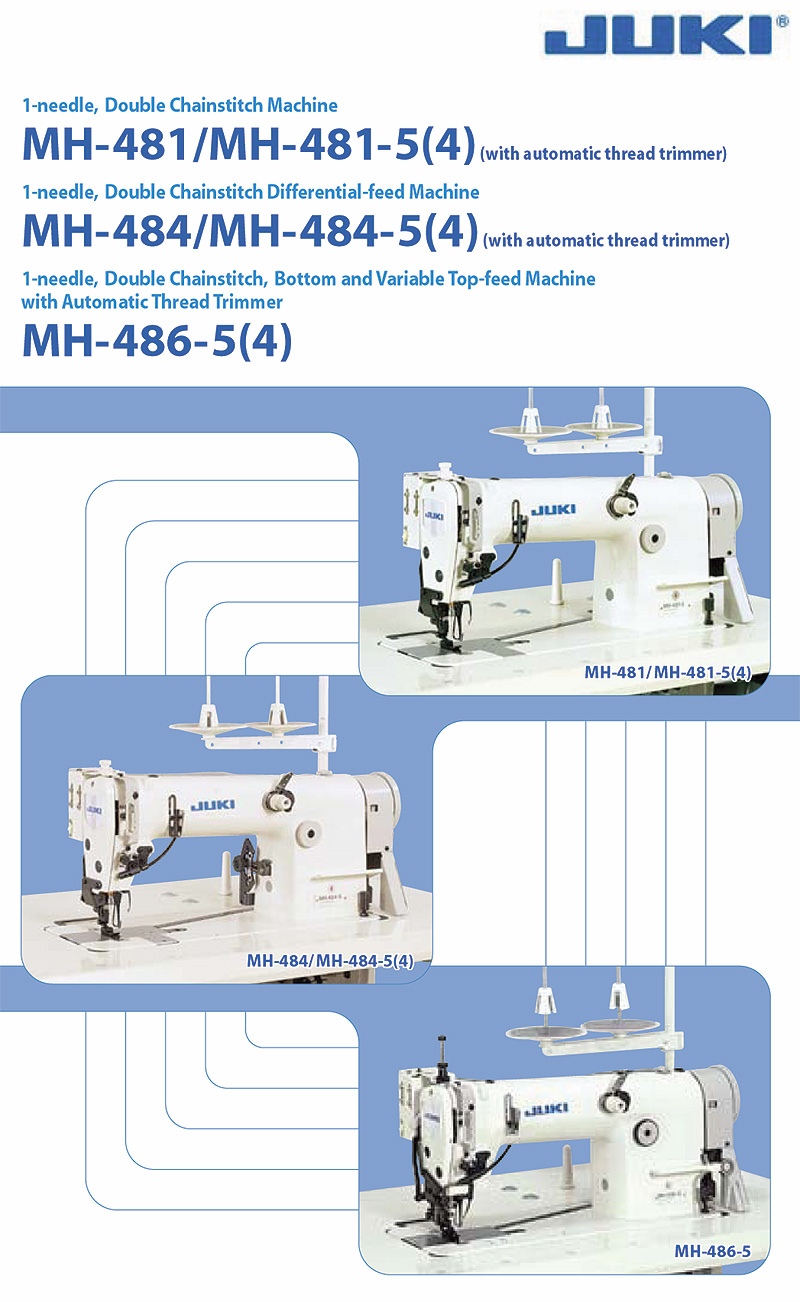

For details on each subclass, please see the enclosed specifications in the images below.  Contact us 1-800-228-0001 for pricing and delivery time on the model that best suits your particular sewing application.



Techical Specifications TECHNICAL SPECS: Technical Data – Standard JUKI MH-481 Chain Stitch Machine

  • MAX SPEED: 5,500 RPM
  • STITCH LENGTH:  1 to 4 mm, Adjustable by Dial
  • PRESSER FOOT LIFT:  10mm by Knee, 5mm by Hand
  • NEEDLE BAR STROKE:  30mm
  • SAFETY STITCH:  Condensation Stitch / Reverse Stitching by Lever
  • LOOPER SYSTEM:  Inclined Crank
  • LOOPER STROKE:  21.5mm
  • LUBRICATION:  Automatic



Sewing Machine Setup MACHINE SETUP: This machine ships complete and fully assembled – ready to sew upon arrival.

It includes:

  • Machine Head
  • Table Top
  • Heavy Duty Stand
  • SERVO Motor
  • LED Light
  • Manuals
  • Extra needles, bobbins, and tools.



Sewing Machine Voltage MOTOR & VOLTAGE: This machine is equiped with a SERVO motor operating on standard 110 Volts power.
Sewing Machine Warranty WARRANTY: 1 Year Warranty
Sewing Machine Sale Price SALE PRICE: Call 1-800-228-0001 for pricing and details.
Sewing Machine Shipping Cost SHIPPING COST: Commercial / Business Address = $240.00

Home / Residential Address = $295.00

Delivery Time DELIVERY TIME: In stock.  4 to 5 days delivery window.
icon pdf MACHINE BROCHURE: N/A
Sewing Machine Parts Manual PARTS MANUAL: Printed copy comes with the machine





JUKI MH-481 Chain Stitch Machine

JUKI MH-481 Chain Stitch Machine

JUKI MH-481 Chain Stitch Machine

JUKI MH-481 Chain Stitch Machine

Additional information

Weight 9999 oz
