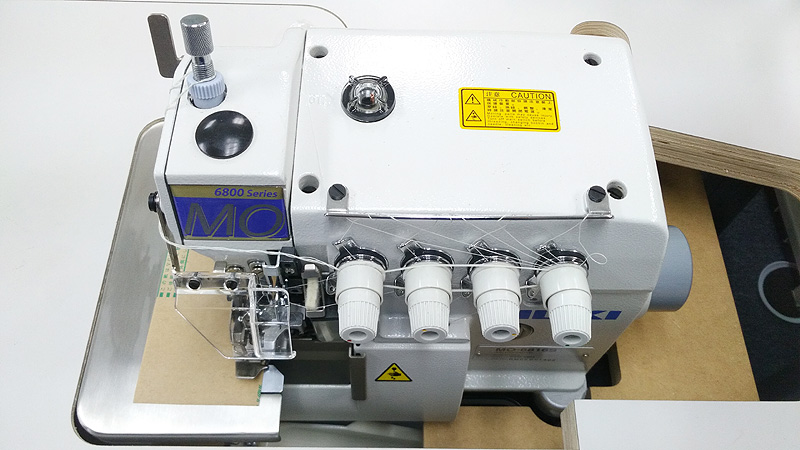

JUKI MO-6816S Five Thread Industrial Serger – 5 Thread Overlock Sewing Machine

JUKI MO-6816S – 5 Thread Industrial Serger, Complete and Fully Assembled

$1,495.00

Shipping Options

Please choose a shipping method.

Product price: $1,495.00
Total options:
Order total:

Description

JUKI MO-6816S Five Thread Industrial Serger – 5 Thread Overlock Sewing Machine





JUKI MO-6816S Five Thread Industrial Serger



Machine Brand MACHINE BRAND:

JUJKI Sewing Machines

Sewing Machine Model MACHINE MODEL:

MO-6816S FF6-50H

Sewing Machine Description MACHINE DESCRIPTION: The MO-6800S Series is a new and powerful overlock/safety stitch machine that has been developed to offer increased reliability and ease-of-use, while upgrading seam quality at higher sewing speeds. It responds to a wider range of materials and processes to finish high-quality soft-feeling seams. With the operating noise having been reduced and increased durability ensured, the cost-effective MO-6800S Series is a leading machine in the new era.

Since the machine comes with a needle-thread take-up mechanism as well as a looper thread take-up mechanism, to offer upgraded responsiveness from light to heavy-weight materials with a lower applied tension, it achieves well-tensed soft-feeling seams that flexibly correspond to the elasticity of the material at the maximum sewing speed of 7,000rpm.

The machine incorporates various mechanisms as standard, such as a differential-feed micro-adjustment mechanism and an external adjustment mechanism for adjusting the feed dog inclination as well as increasing the differential feed ratio, which can be easily adjusted to finish seams that perfectly match the material to be used. Comfortable operation is all but guaranteed, by a wider area around the needle entry, the adoption as standard of a micro-lifter feature that offers improved responsiveness to materials and provides the operator with upgraded operability, and by the reduction of operating noise and vibration, which has been achieved by designing an optimally balanced machine.



Techical Specifications TECHNICAL SPECS:
  • Stitch type: 2-needle overlock
  • Stitch style in the U.S.A.: 516
  • Max. sewing speed :7,000rpm
  • Stitch length : 1.5 – 4mm
  • Needle gauge (mm): 2.0, 2.4, 3.2
  • Overedging width (mm) : 3.2, 4.0, 4.8
  • Differential feed ratio :For gathering 1:2 (Max. 1:4), For stretching 1:0.7 (Max. 1:0.6)
  • Needle bar stroke: 24.5mm
  • Inclination angle of the needle: 20°
  • Needle mechanism: Needle bar method and upper/lower bushing
  • Needle: DC27 (excluding some subclass model)
  • Max. lift of the presser foot :7mm (excluding some subclass model)
  • Max. presser foot pressure: 63.7N (6.5kg)
  • Stitch adjusting method: By push-button
  • Differential-feed adjusting method: By lever (with micro-adjustment)
  • Lubrication: Automatic
  • Lubricating oil: JUKI Machine Oil 18 (equivalent to ISO VG18)



Sewing Machine Setup MACHINE SETUP: This machine ships complete and fully assembled – ready to sew upon arrival.

It includes:

  • Machine Head
  • Table Top
  • Heavy Duty Stand
  • SERVO Motor
  • Thread Stand
  • LED Light
  • Manuals
  • Extra needles



Sewing Machine Voltage MOTOR & VOLTAGE: This machine is equiped with a SERVO motor operating on standard 110 Volts power.
Sewing Machine Warranty WARRANTY: 1 Year Warranty
Sewing Machine Sale Price SALE PRICE: $1,395.00 SALE PRICE
Sewing Machine Shipping Cost SHIPPING COST: Commercial / Business Address = $240.00

Home / Residential Address = $295.00

Delivery Time DELIVERY TIME: In stock.  4 to 7 days delivery window.
Sewing Machine Parts Manual PARTS MANUAL: Printed copy comes with the machine



JUKI MO-6816S Five Thread Industrial Serger

JUKI MO-6816S Five Thread Industrial Serger

JUKI MO-6816S Five Thread Industrial Serger

JUKI MO-6816S Five Thread Industrial Serger

JUKI MO-6816S Five Thread Industrial Serger

JUKI MO-6816S Five Thread Industrial Serger

JUKI MO-6816S Five Thread Industrial Serger

JUKI MO-6816S Five Thread Industrial Serger

JUKI MO-6816S Five Thread Industrial Serger

JUKI MO-6816S Five Thread Industrial Serger

JUKI MO-6816S Five Thread Industrial Serger

Additional information

Weight 9999 oz
