JUKI MS-1261 Three Needle Feed-Off-The-Arm Chainstitch Sewing Machine for Heavy-Weight Materials

Three Needle Feed Off The Arm Double Chainstitch Sewing Machine for Heavy Weight Materials

REQUEST A QUOTE

Description

JUKI MS-1261 Three Needle Feed Off The Arm Double Chainstitch Sewing Machine for EXTRA HEAVY WEIGHT Materials



JUKI MS-1190 Two Needle Feed Off The Arm Machine



Machine Brand MACHINE BRAND: JUKI Industrial Sewing Machines
Sewing Machine Model MACHINE MODEL:

JUKI MS-1261

Sewing Machine Description MACHINE DESCRIPTION: The JUKI MS-1261 is a three needle Feed-Off-The-Arm chainstitch sewing machine designed to sew heavy weight and extra heavy weight materials such as jeans.

  • Achieve beautifully finished seams while preventing puckering and stitch skipping.
  • Low tension stitching ability and improved stitching mechanism prevents puckering
  • The machine prevents stitch skipping even when it runs at high speed, ensuring high-quality products.
  • The machine is equipped as standard, with newly developed folders which enable the machine to perform stitching with consistency.
  • Designed for ease of use. Push button type stitch length dial, times of feed driving and looper rocking cam can be separately adjusted

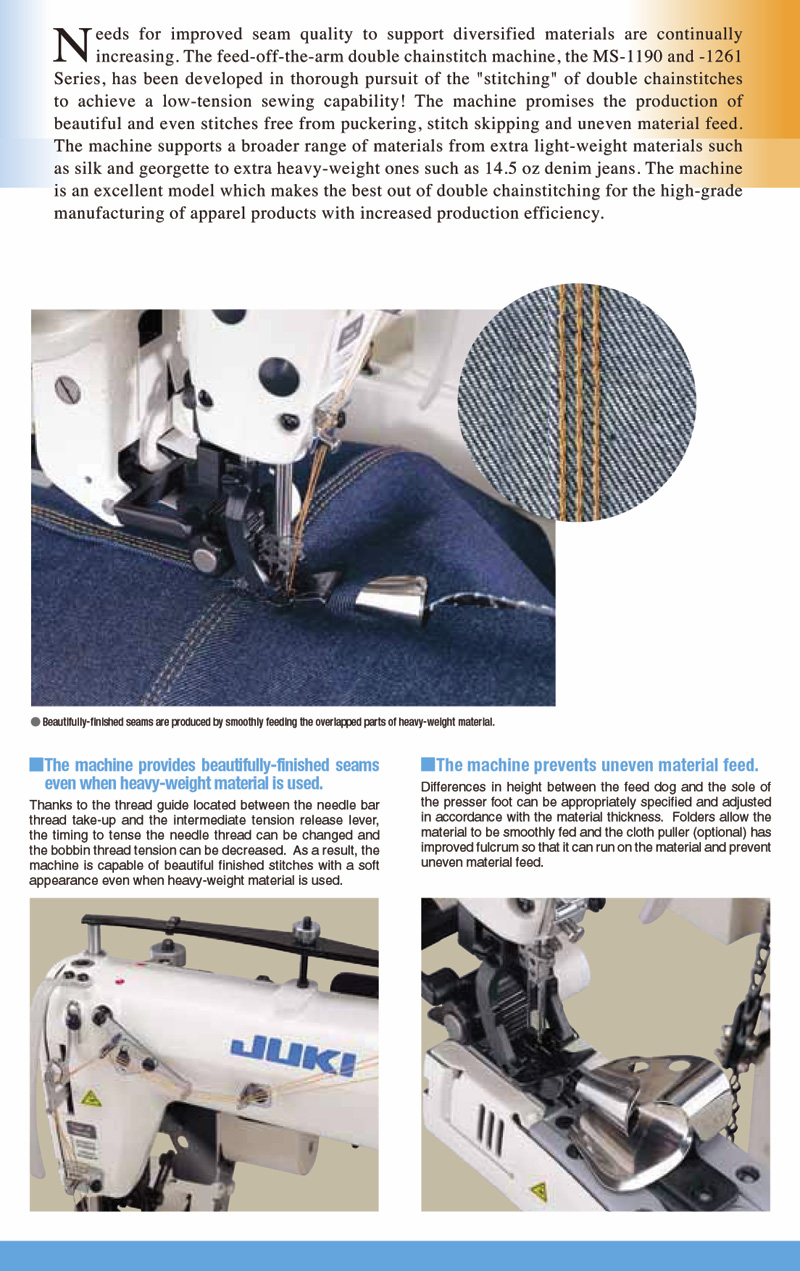

Thanks to the thread guide located between the needle bar thread take-up and the intermediate tension release lever, the timing to tense the needle thread can be decreased. As a result, the machine is capable of beautiful stitches with a soft appearance even when heavy-weight material is used.

This machine can be ordered in two different Sub-Classes:

  • JUKI MS-1261 – for EXTRA HEAVY-WEIGHT materials
  • JUKI MS-1261M – for MEDIUM to HEAVY-WEIGHT materials



Available Needle Gauges are:

  • 1/4″ (6.4 mm) STANDARD
  • 7/32″ (5.6 mm)
  • 9/32″ (7.2 mm)
  • 5/16″ (8 mm)
  • 3/8″ (9.6 mm)



There are several optional accessories that can be ordered for this machine depending on your needs:

  • CLOTH PULLER:  V045R Made of Rubber and V045S Made of Steel
  • CHAIN CUTTER:  AT27 Chain-Off Thread Cutter
  • NEEDLE COOLER:  CL-3 Standard, and CL-3 With Auxiliary blower for light weight materials
  • SILICONE OIL THREAD LUBRICATING UNIT:  Part # 129-76254
  • PNEUMATIC AUTO FOOT LIFT:  AK81,  Knee Switch (Part # GAK81000AA0) and Pedal Switch (Part # GAK810000A0)



Please see the information presented below for more details and set-up options or call us at 1-800-228-0001 to discuss your machine requirements.



Techical Specifications TECHNICAL SPECS: NUMBER OF NEEDLES:  3

MAX SEWING SPEED:  3,600 SPM (3,000 recommended)

STITCH LENGTH:  1.4 to 4.2 mm

PRESSER FOOT LIFT:  10 mm

TUBE CIRCUMFERENCE at need le entry:  190 mm

ADJUSTABLE STITCH LENGTH:  By Push Button with Locking Mechanism

LUBRICATION:  Semi-Automatic Oil Lubrication



Sewing Machine Setup MACHINE SETUP: This machine ships complete and fully assembled – ready to sew upon arrival.

It includes:

  • Machine Head
  • Table Top
  • Heavy Duty Stand
  • SERVO Motor
  • LED Light
  • Manuals
  • Extra needles and tools.



Sewing Machine Voltage MOTOR & VOLTAGE: This machine is equipped with a SERVO motor operating on standard 110 Volts power.
Sewing Machine Warranty WARRANTY: 1 Year Warranty
Sewing Machine Sale Price SALE PRICE: Call us at 1-800-228-0001 for pricing and lead time
Sewing Machine Shipping Cost SHIPPING COST: Commercial / Business Address = $240.00

Home / Residential Address = $295.00

Delivery Time DELIVERY TIME: Contact us at-1800-228-0001 for lead time
icon pdf MACHINE BROCHURE: N/A
Sewing Machine Parts Manual PARTS MANUAL: Printed copy comes with the machine
