KANSAI SPECIAL FSX 6604 MH-DD-60 Flat Seamer Machine with Automatic Foot Lift and Vacuum System

KANSAI SPECIAL FSX 6604 Flat Seamer Machine



Machine Brand MACHINE BRAND:

KANSAI SPECIAL

Sewing Machine Model MACHINE MODEL:

FSX 6604MH-DD-60 Flat Seamer Machine

Sewing Machine Description MACHINE DESCRIPTION: The KANSAI SPECIAL FSX series is a 4 needle, 6 thread, feed-off-the-arm, top and bottom cover stitch machine. This machine is suitable for overlapping – such as joining of high quality under wear, sports wear and inseaming of brief.
Equipped with one side cut or both side cut trimmer, this system guarantees flat shape with a neat finish all-around.   Versatility in this series is available for different applications from thin to heavy materials such as inseaming of brief’s cross seams. The design of this feed-off-the-arm is perfect for tubular garments.

The machine can be ordered in 4 different sub-class configurations:



  • S:  Left Side Edge Trimming
  • LM:  For LIGHT to MEDIUM Fabrics

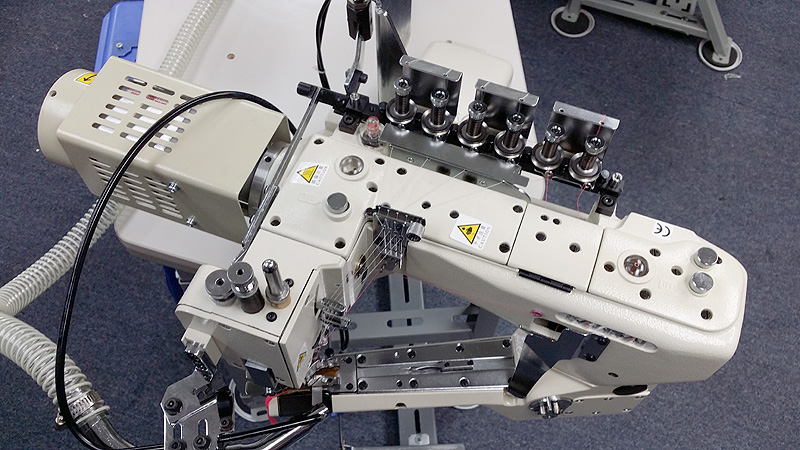

  • MH (Shown): For MEDIUM to HEAVY WEIGHT Fabrics
  • MH-B:  For BUTT SEAMING

We can supply you any of these subclass machines depending on your exact needs.





Techical Specifications TECHNICAL SPECS:
  • MAX SPEED:  4,200 RMP
  • NUMBER OF THREADS:  6
  • NUMBER OF NEEDLES:  4
  • FOOT LIFT:  6 mm
  • NEEDLE BAR STROKE:  30 mm



Sewing Machine Setup MACHINE SETUP: This machine ships complete and fully assembled – ready to sew upon arrival.

The machine shown and priced here is equiped with the following extras:

  • PNEUMATIC (AIR) FOOT LIFT SYSTEM
  • VACUUM SYSTEM
  • INTEGRATED SERVO MOTOR



It includes:

  • Machine Head
  • Table Top
  • Heavy Duty Stand
  • SERVO Motor
  • LED Light
  • Thread Stand
  • Manuals
  • Extra needles



Sewing Machine Voltage MOTOR & VOLTAGE: This machine is equiped with a SERVO motor operating on standard 110 Volts power.
Sewing Machine Warranty WARRANTY: 1 Year Warranty
Sewing Machine Sale Price SALE PRICE: $4,995.00 – as shown and described  (Call us at 1-800-228-0001 for different sub class machines or configurations)
Sewing Machine Shipping Cost SHIPPING COST: Commercial / Business Address = $295.00

Home / Residential Address = $395.00

Delivery Time DELIVERY TIME: 7 to 10 Days for Set-Up and Delivery
icon pdf MACHINE BROCHURE: KANSAI SPECIAL FSX Flat Seamer Series Catalog
Sewing Machine Parts Manual PARTS MANUAL: Printed copy comes with the machine
