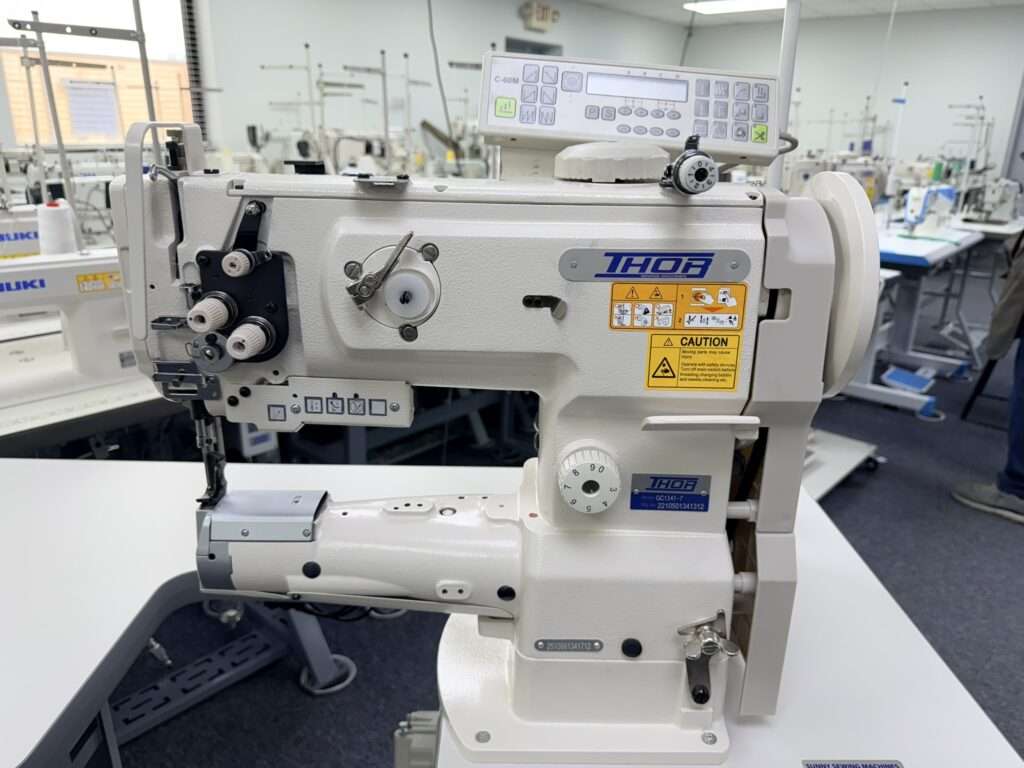

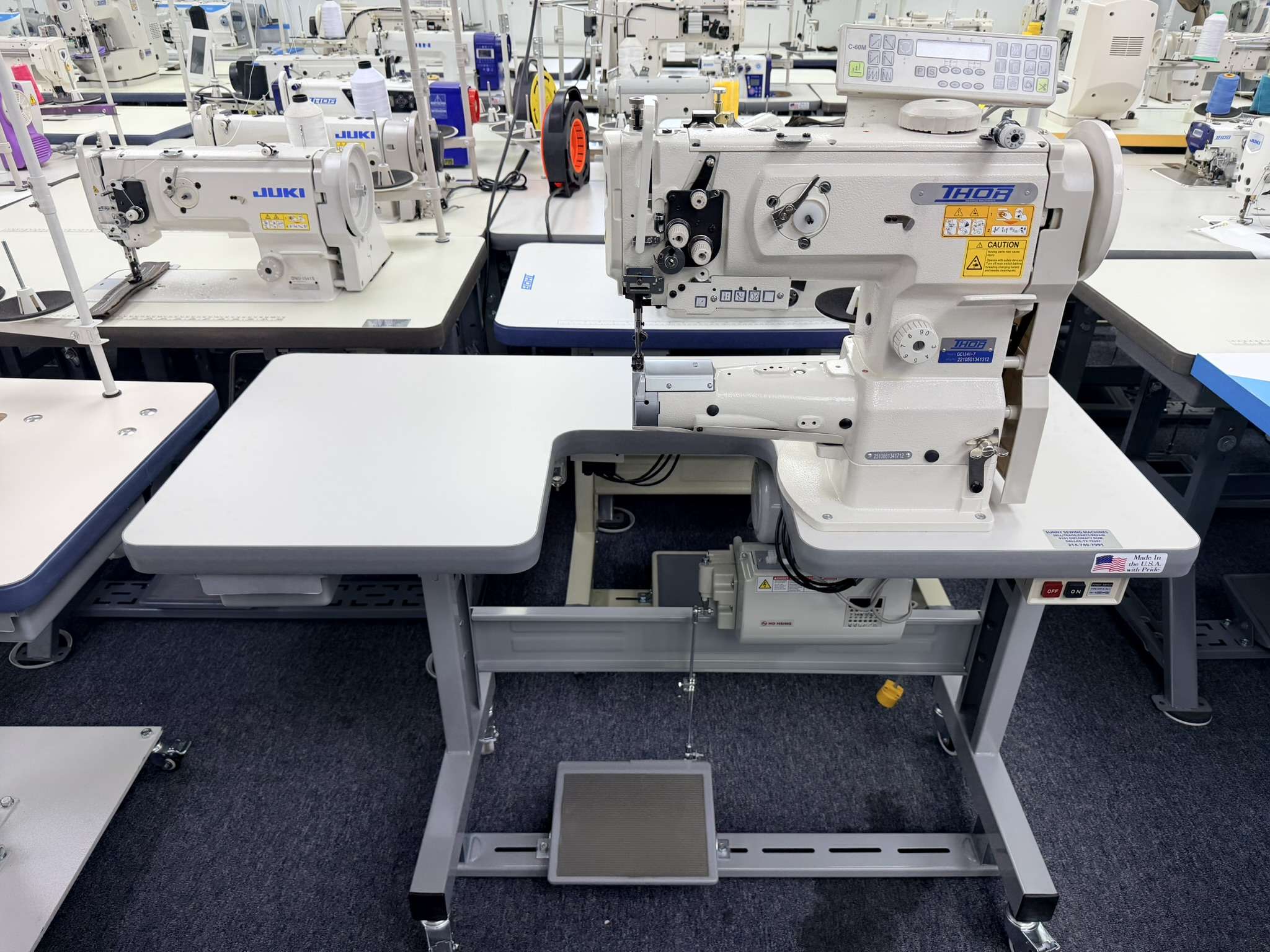

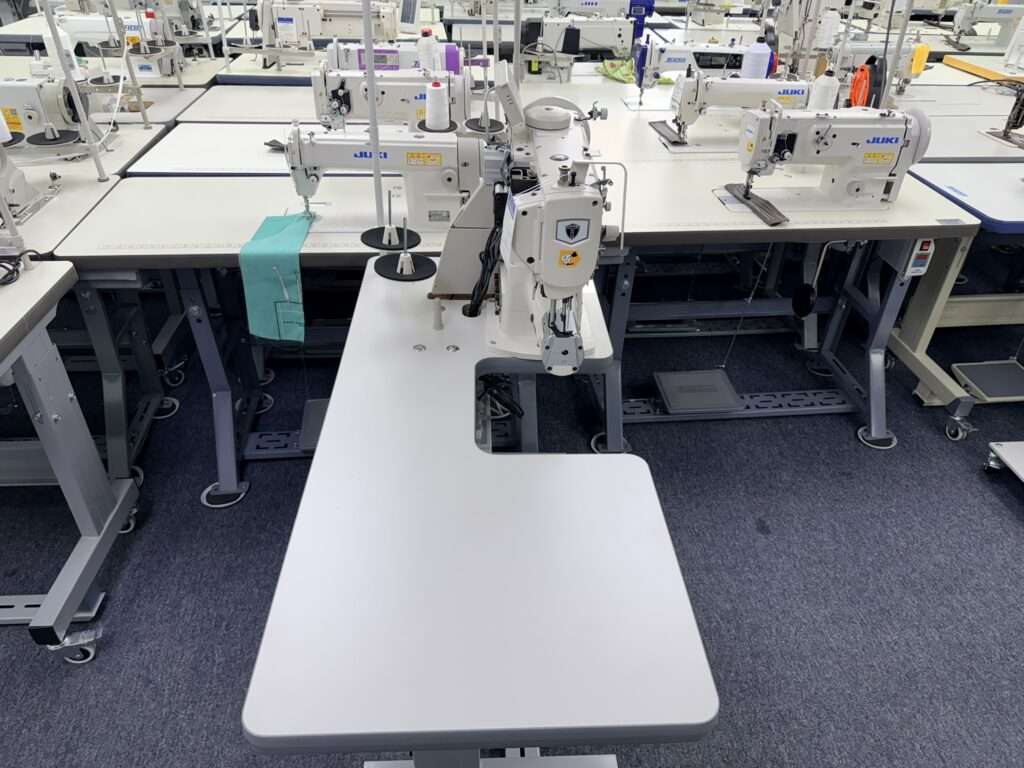

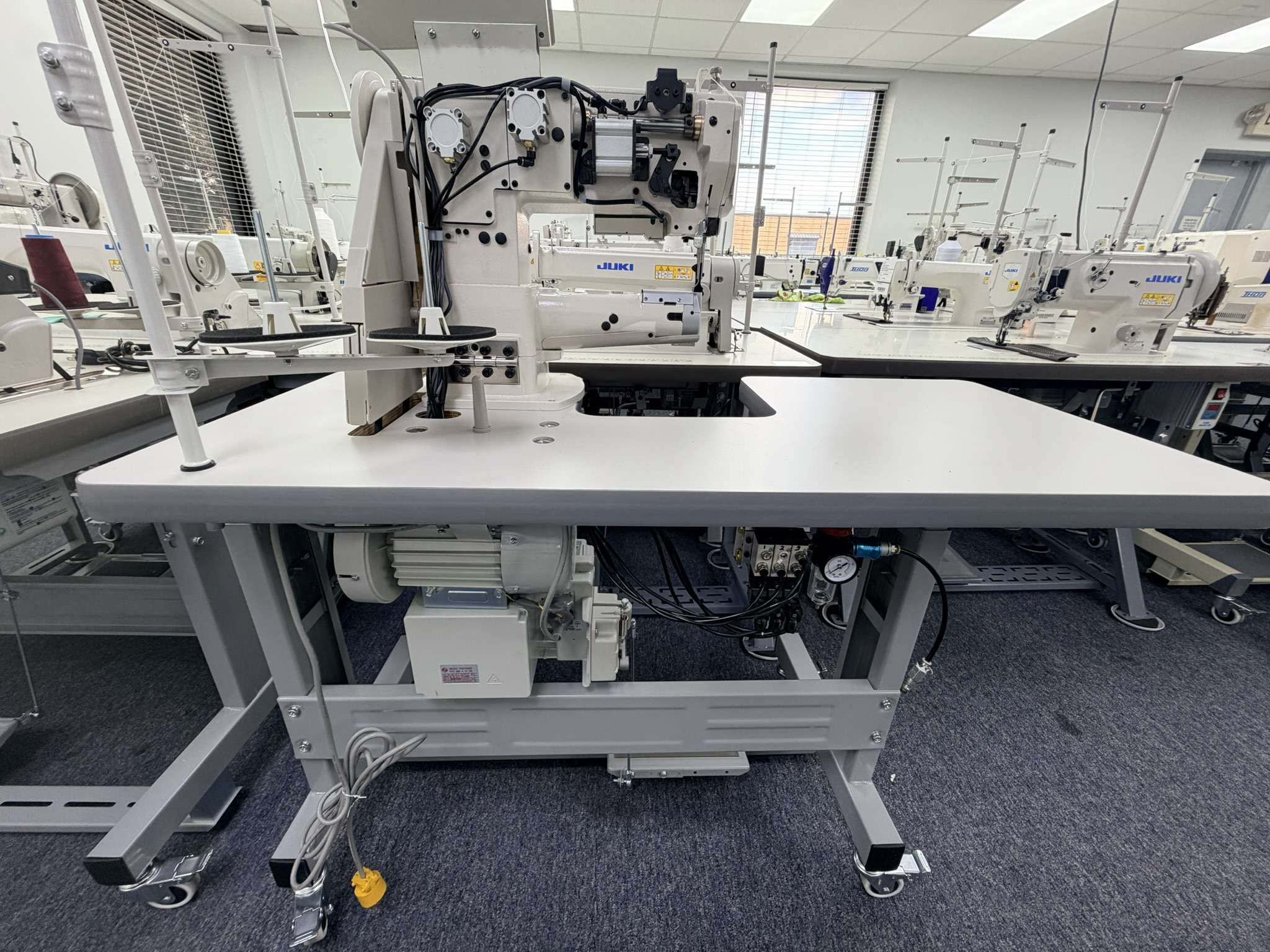

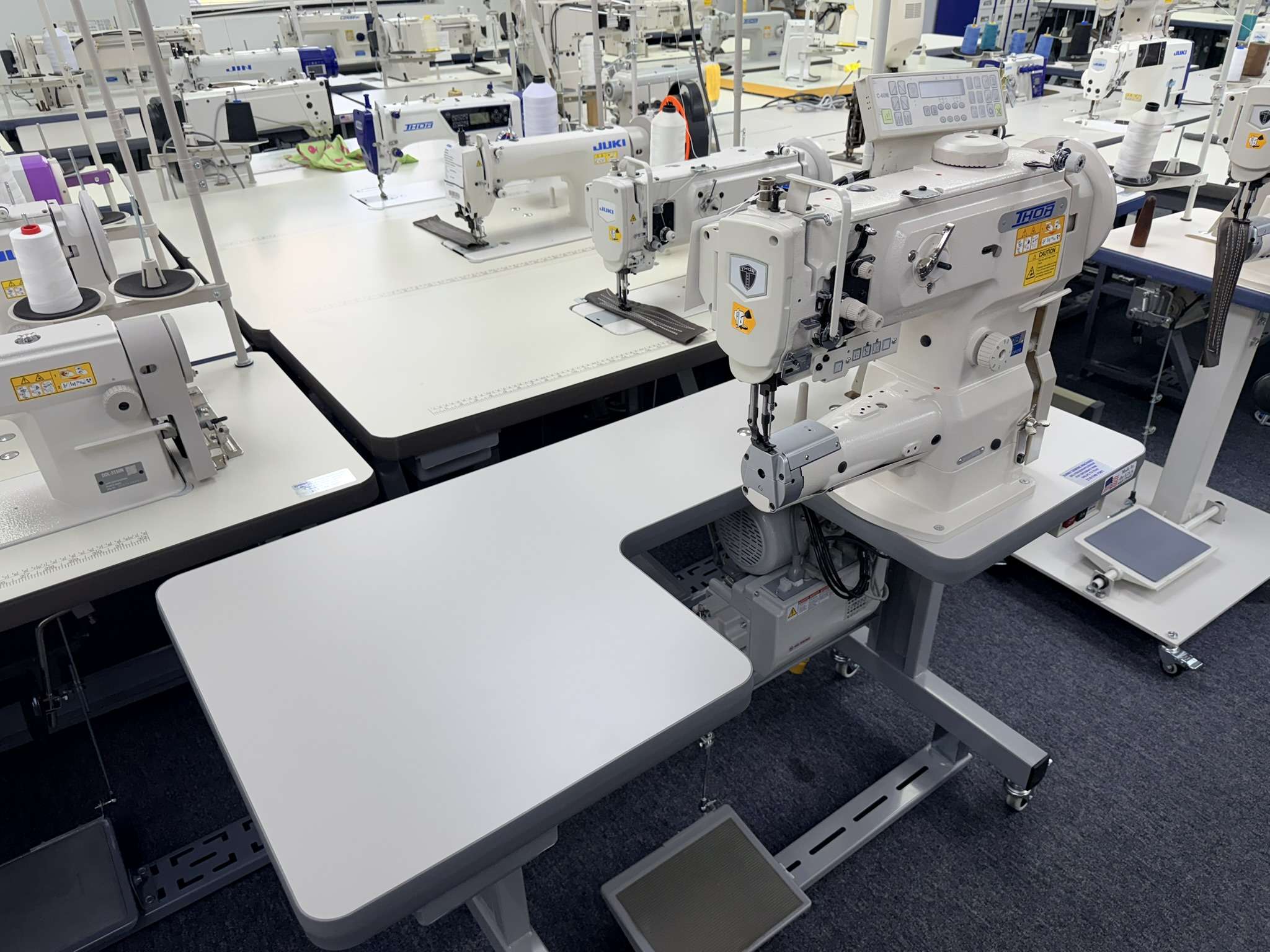

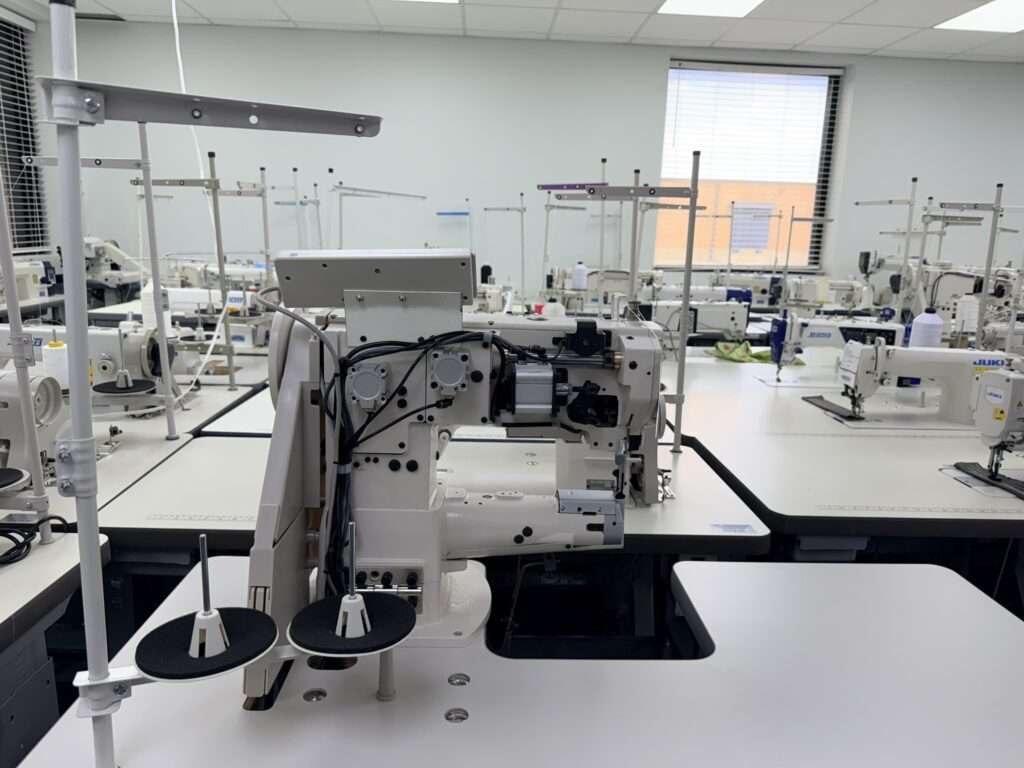

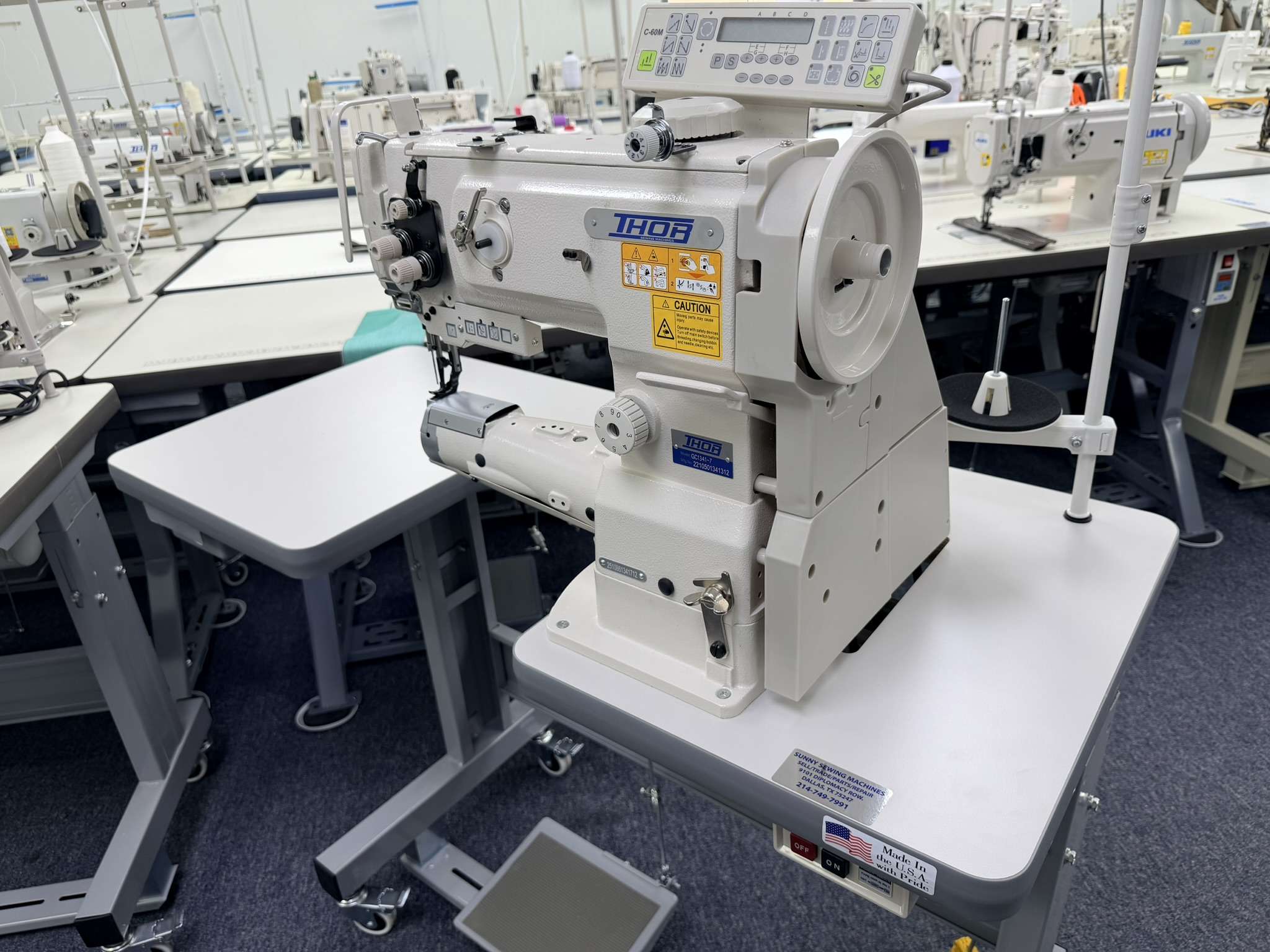

THOR GC-1341-7 Cylinder Arm Waling Foot Machine for Heavy Weight Materials. Call For Price 214-749-7991.

QUICK OVERVIEW

NEW – Single Needle Heavy Weight Cylinder Arm Walking Foot Sewing Machine with Big Hook and Bobbin



$4,295.00

Shipping Options

Please choose a shipping method.

Product price: $4,295.00
Total options:
Order total:

Description

THOR GC-1341-7 Single Needle Walking Foot Sewing Machine with Auto Thread Cutter and Foot Lift. Call For Price 214-749-7991.



Machine Brand MACHINE BRAND: KINGMAX Industrial Sewing Machines
Sewing Machine Model MACHINE MODEL:

THOR GC-1341-7

Sewing Machine Description MACHINE DESCRIPTION:
  • Cylinder Arm Walking Foot (Triple Compound Feed)
  • Auto Thread Trimmer
  • Auto Back Tacks (Starting & Ending)
  • AIR Foot Lift (Compressed Air Required)
  • C-60M Top Mounted Control Panel
  • Top-Load LARGE Hook and Bobbin
  • 9 Millimeter Max Stitch Length
  • Ideal Thread Sizes TEX-70 to TEX-210
  • Heavy Duty Pedestal Stand with Locking Wheels
  • 750 WATT HO-HSING ELECTRONIC SERVO Motor that Drives the Auto Functions
  • PACKAGE PRICED COMPLETE AND FULLY ASSEMBLED

APPLICATIONS:

  • This machine has been a consistent BEST seller for customers sewing hand bags, purses, wallets and similar items.  It’s one of the highest rated machines in this class with a large nation-wide following.
  • The GC-1341-7 is suitable for sewing medium to heavy weight materials such as leather, vinyl, canvas, cork, webbing, and synthetics with ease and great stitch precision.

FEATURES:

  • ‚The high 16mm presser foot lift enables easy material handling for extra heavy sewing.
  • Large hook and bobbins for extended thread life even with the thickest of threads.
  • Will sew with thread sizes from TEX 70 to TEX 210.
  • Reverse lever.
  • Adjustable stitch length by stitch dial up to 2 1/2 stitches per inch (9mm Max Stitch Length).
  • Stepping Foot Height Adjustment Dial
Techical Specifications TECHNICAL SPECS:
  • APPLICATION: For Medium to Heavy Weight Materials
  • MAX SEWING SPEED: 2,000 SPM
  • MAX STITCH LENGTH: 9 mm Forward/Reverse
  • NEEDLE BAR STROKE: 36mm
  • FOOT LIFT: 16mm by Knee, 9mm by Hand
  • HOOK: LARGE CAPACITY 1.6-Fold Hook
  • NEEDLE: 135×17
  • THREAD: TEX 70 to TEX 210



Sewing Machine Setup MACHINE SETUP: This machine ships complete and fully assembled – ready to sew upon arrival.

It includes:

  • Machine Head
  • Table Top
  • Pedestal Stand
  • Electronic SERVO Motor
  • Top Mounted Control Panel
  • Tools & Manuals
Sewing Machine Voltage MOTOR & VOLTAGE: This machine is equipped with a SERVO motor operating on standard 110 Volts power.
Sewing Machine Warranty WARRANTY: 1 Year Warranty
Sewing Machine Sale Price SALE PRICE: $4,295.00
Sewing Machine Shipping Cost SHIPPING COST: Commercial / Business Address = $280.00

Home / Residential Address = $340.00

Delivery Time DELIVERY TIME: IN STOCK…7 to 10 Days Delivery Window
icon pdf MACHINE BROCHURE: N/A
Sewing Machine Parts Manual PARTS & INSTRUCTION MANUAL: Ship with the machine



Additional information

Weight 9999 oz
Color

Dark Gray, Orange, Pink
