THOR GT-1906-BH Box X Pattern Sewing Machine with 60mm x 40mm Sewing Field. Call For Price 214-749-7991.
,

THOR GT-1906-BH Box X Pattern Sewing Machine with 60mm x 40mm Sewing Field. Call For Price 214-749-7991.

NEW

$5,495.00

Shipping Options

Please choose a shipping method.

Product price: $5,495.00
Total options:
Order total:

Description

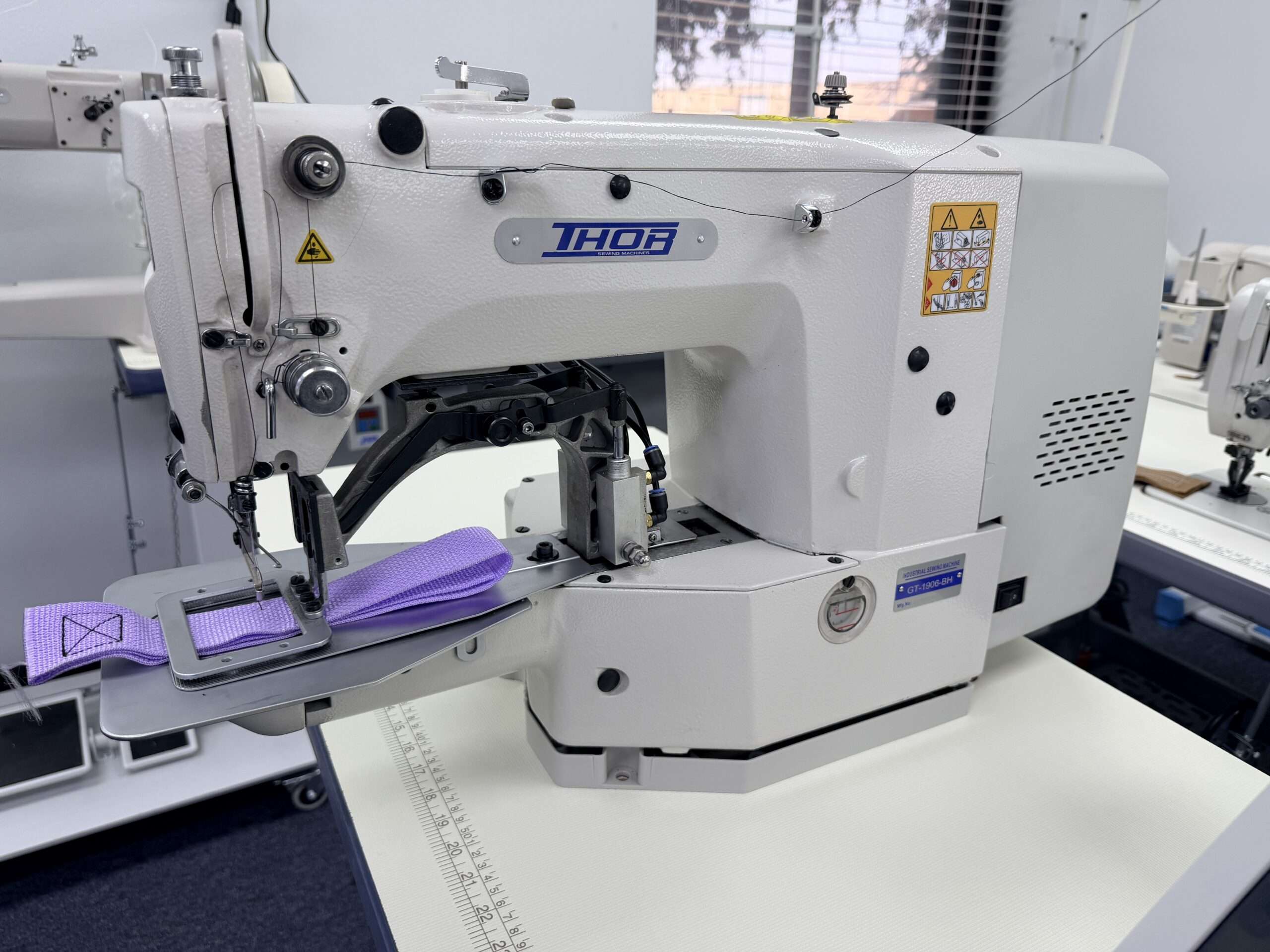

THOR GT-1906-BH Electronic Box X Sewing Machine with On-Board Programmer / Webbing Tacker with BIG Bobbin.





MACHINE BRAND:
MACHINE MODEL:

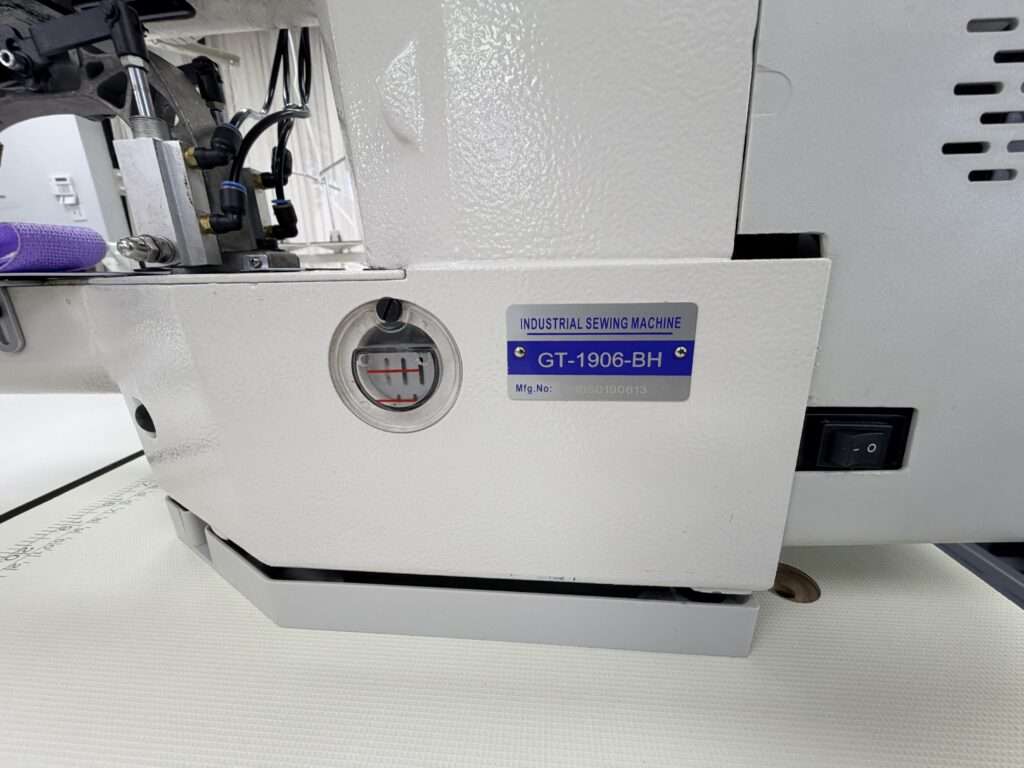

THOR GT-1906-BH
MACHINE DESCRIPTION:
APPLICATIONS:
  • Bags and backpacks: securing handles, shoulder straps, strap tabs, and buckle loops.
  • Pet products: stitching webbing overlaps on collars, leashes, and harness components.
  • Outdoor gear: reinforcing tent tabs, camping straps, and equipment attachment loops.
  • Workwear: reinforcing pocket corners, belt loops, and tool-holder tabs.
  • Hook-and-loop fasteners: sewing small patches and closures that fit within the sewing field.
  • Covers and upholstery: attaching securing straps and reinforcing attachment points.
  • Webbing assemblies: forming sewn loops around D-rings, buckles, and other hardware.
FEATURES:

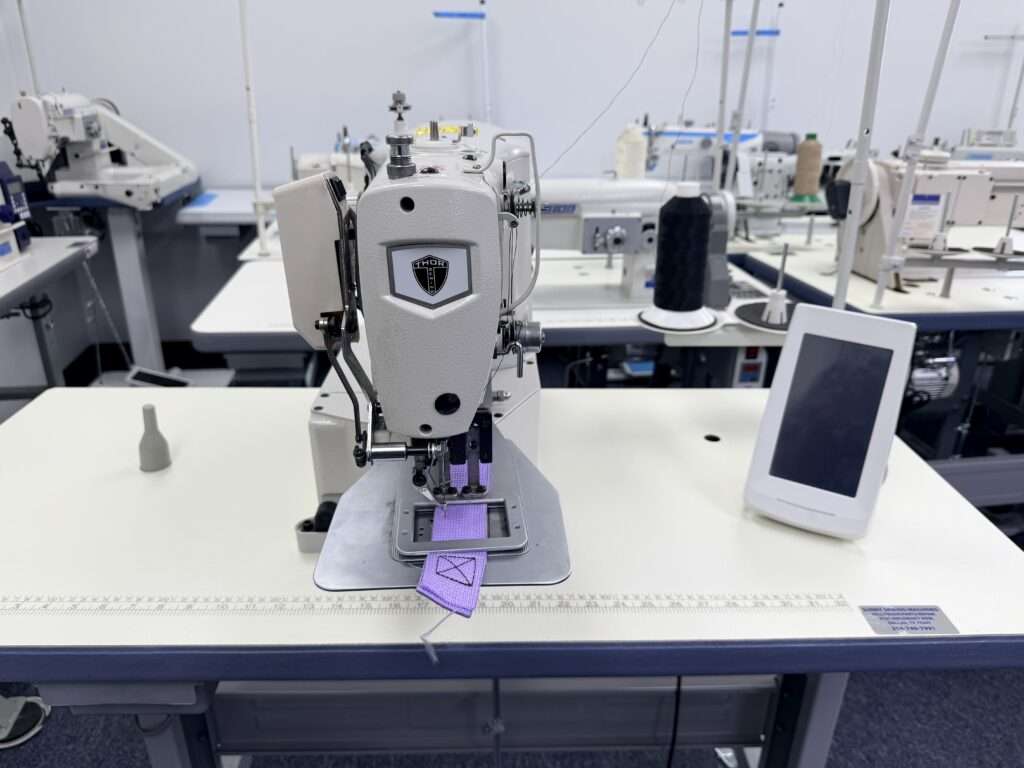

  • Programmable color LCD touchscreen — create and edit sewing patterns directly on the machine.
  • 100 built-in patterns — including box-X, horizontal and vertical bar tacks, eyelets, and half-moon patterns.
  • 60 × 40 mm sewing field — for compact reinforcement and attachment patterns.
  • Large-capacity hook and bobbin — reduces bobbin changes during production.

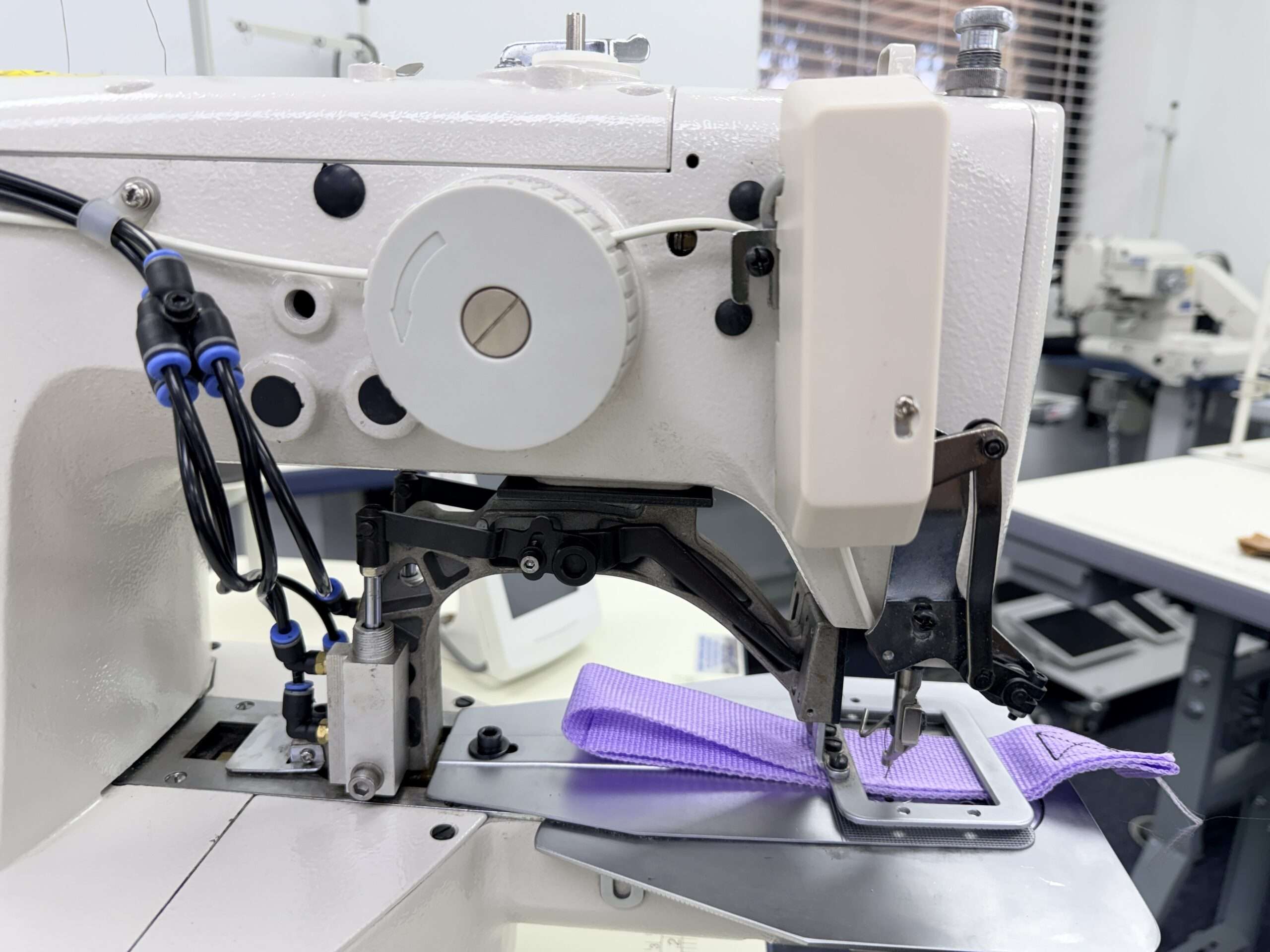

  • Pneumatic work clamp — holds material during sewing; requires an air compressor.
  • Up to 3,000 stitches per minute — for repetitive production work.
  • Adjustable stitch length — 0.1–10 mm in 0.1 mm increments.
  • 14 mm standard clamp lift — up to 17 mm using the reverse-rotation needle-up function.
  • Tex 27–138 thread range — accommodates different materials and reinforcement needs.
  • 110 V direct-drive motor system — operates on standard 110 V power.
  • Custom clamping and programming available — to suit specific products.
TECHNICAL SPECS:
  • Machine type: Electronic box-X and shape-tacking
  • Material range: Medium to heavyweight
  • Maximum sewing speed: 3,000 stitches per minute
  • Sewing area: 60 mm X × 40 mm Y (2.36″ × 1.57″)
  • Stitch length: 0.1–10 mm, adjustable in 0.1 mm increments
  • Work-clamp lift: 14 mm standard; 17 mm with reverse-rotation needle-up function
  • Needle system: DP×17
  • Needle sizes: #16–#23
  • Thread range: Tex 27–Tex 138
  • Hook and bobbin: Large capacity

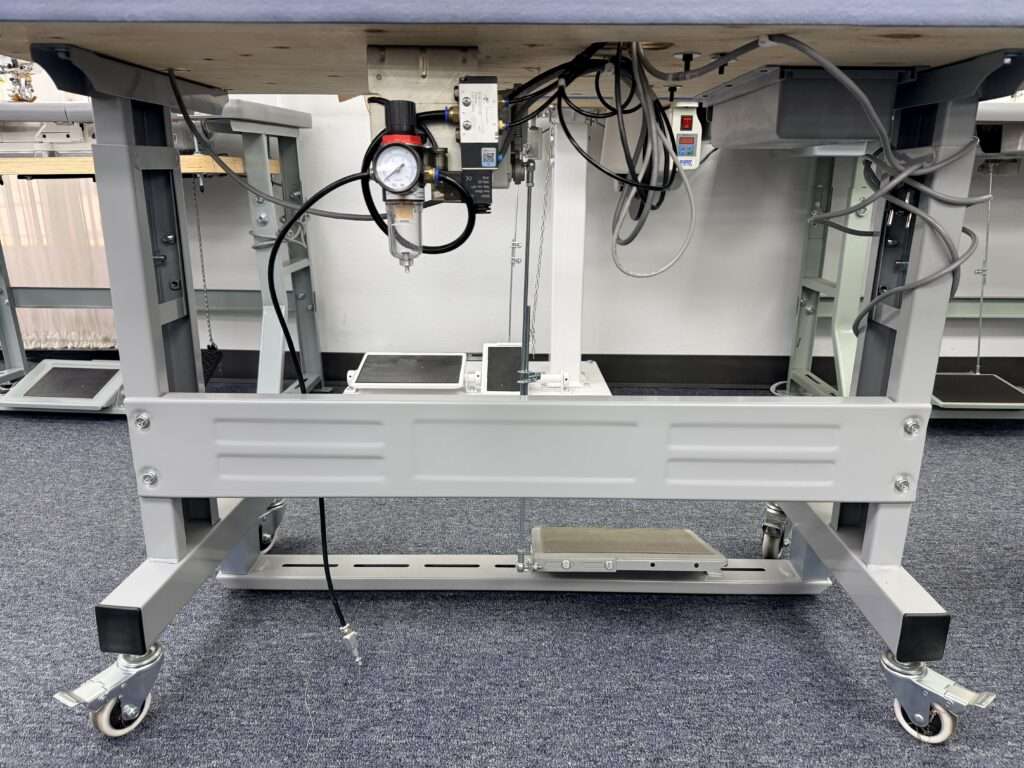

  • Clamp operation: Pneumatic; external air compressor required
  • Motor: Direct-drive servo/stepping motor system
  • Power supply: 110 V
  • Standard patterns: 100
  • Control panel: Color LCD touchscreen with pattern programming and editing

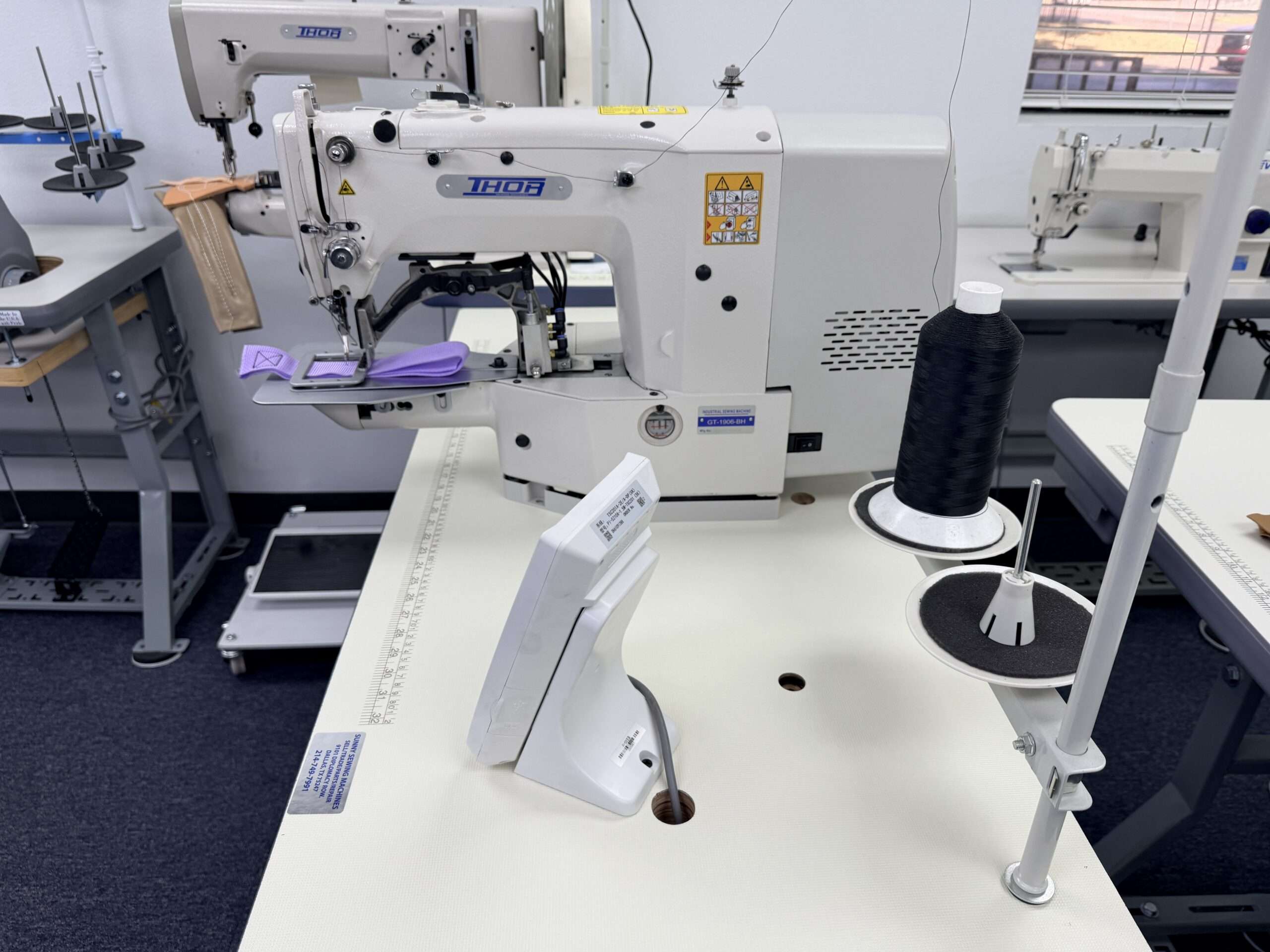

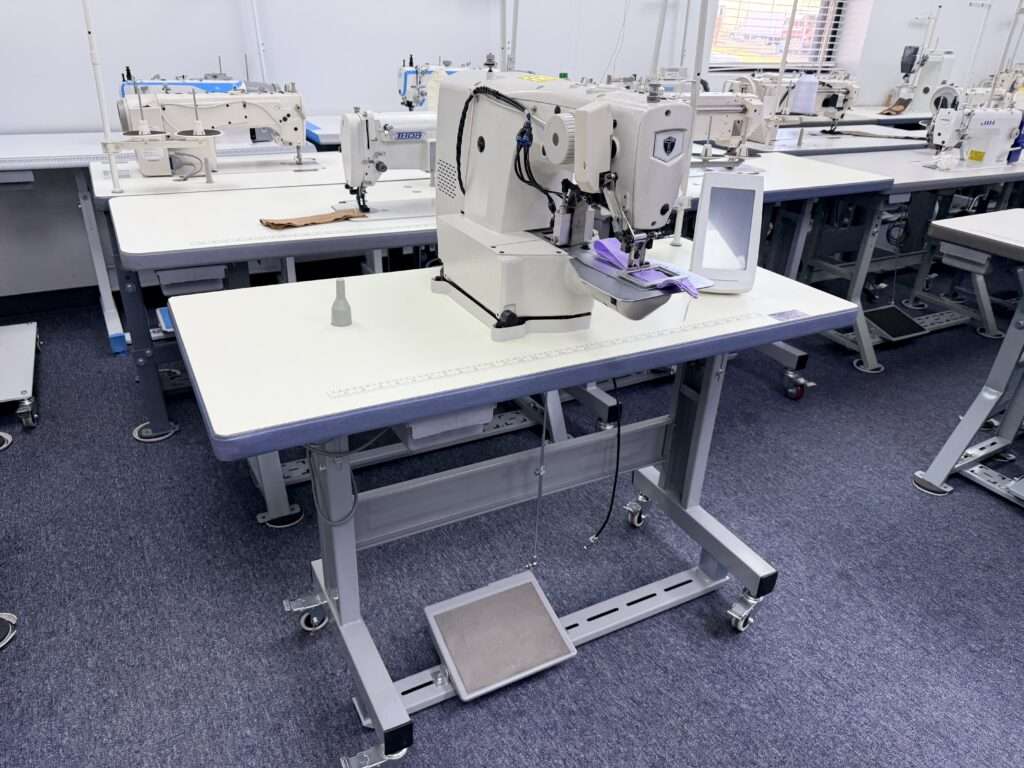

MACHINE SETUP: This machine ships complete and fully assembled – ready to sew upon arrival.

It includes:

  • Machine Head

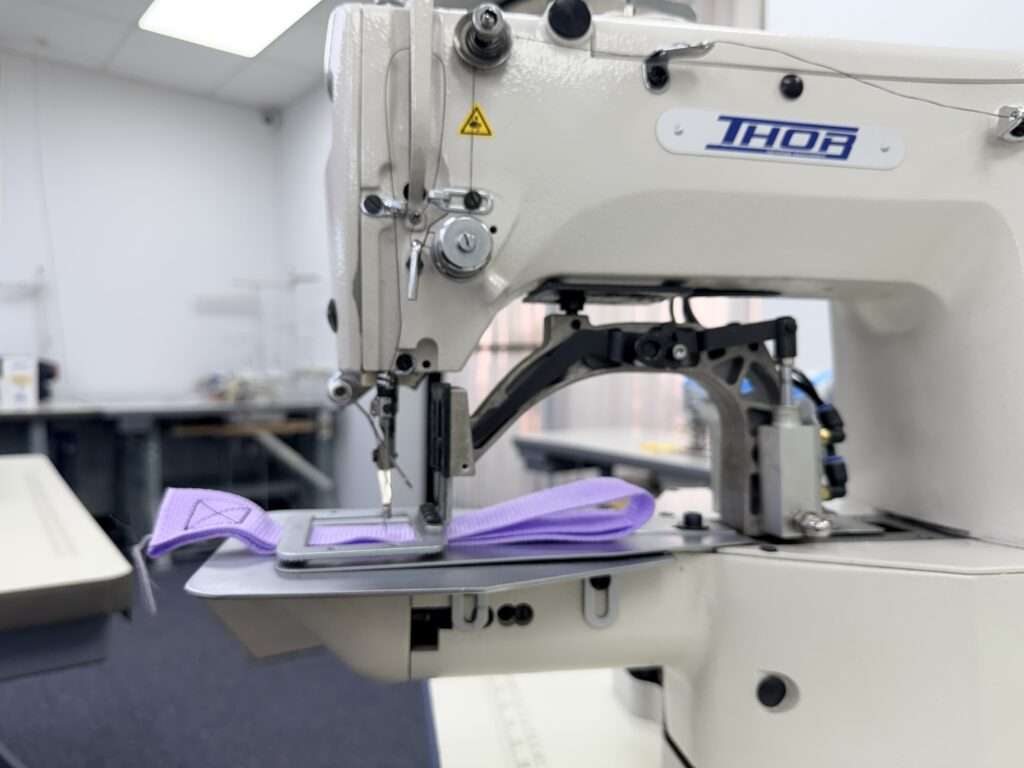

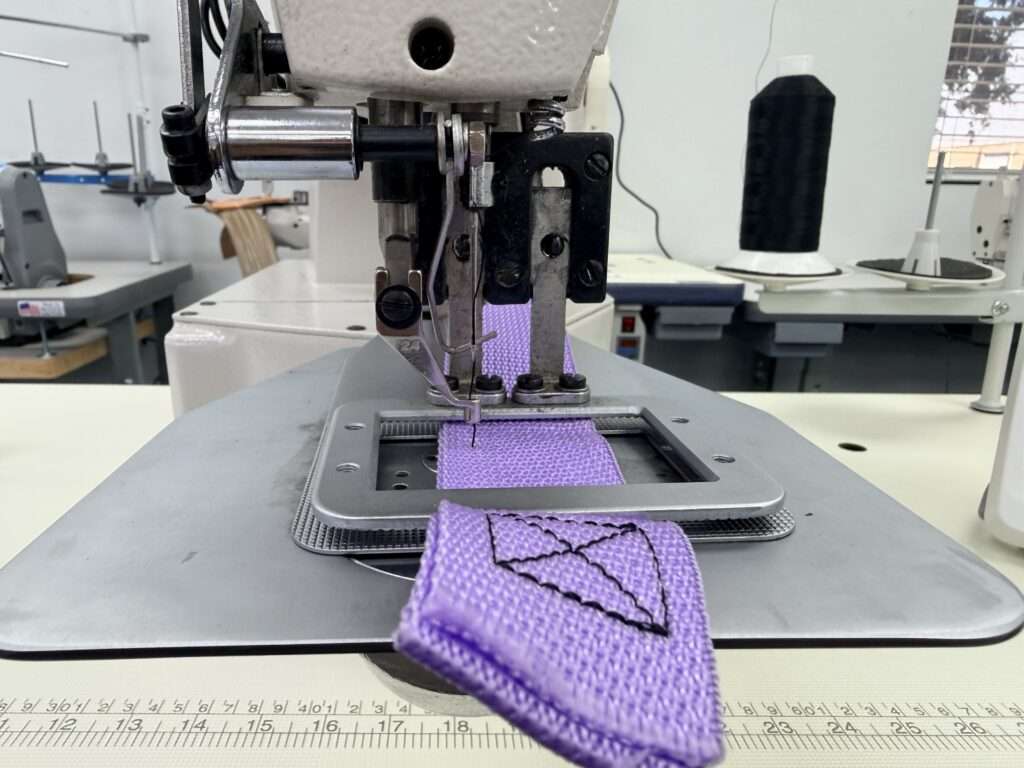

  • Factory set East-West Clamp for 1″ Webbing
  • Table Top
  • Stand
  • Thread Stand
  • 110 Volt Power, Head Integrated Direct Drive Stepping Motors
  • Tools & Manuals


MOTOR & VOLTAGE: This machine is quipped with a DIRECT DRIVE SERVO / STEPPING motor operating on standard 110 Volts power.
WARRANTY: 1 Year Limited Warranty
SALE PRICE: $5495.00
SHIPPING COST: Commercial / Business Address = 335.00

Home / Residential Address = $420.00
DELIVERY TIME: In stock now and ready to ship.  7
MANUALS: Ship with the machine



























…
