Name: HIGHLEAD GA2698 Long Arm Transverse Seam Cylinder Arm Drop Feed Sewing Machine
SKU: 1098
Price: 7495.00 USD
Availability: InStock

Description

HIGHLEAD GA2698 Single Needle Transverse Seam (Up the Arm) Long Arm Drop Feed Sewing Machine with Shuttle Hook for Heavy Weight Sewing Operations

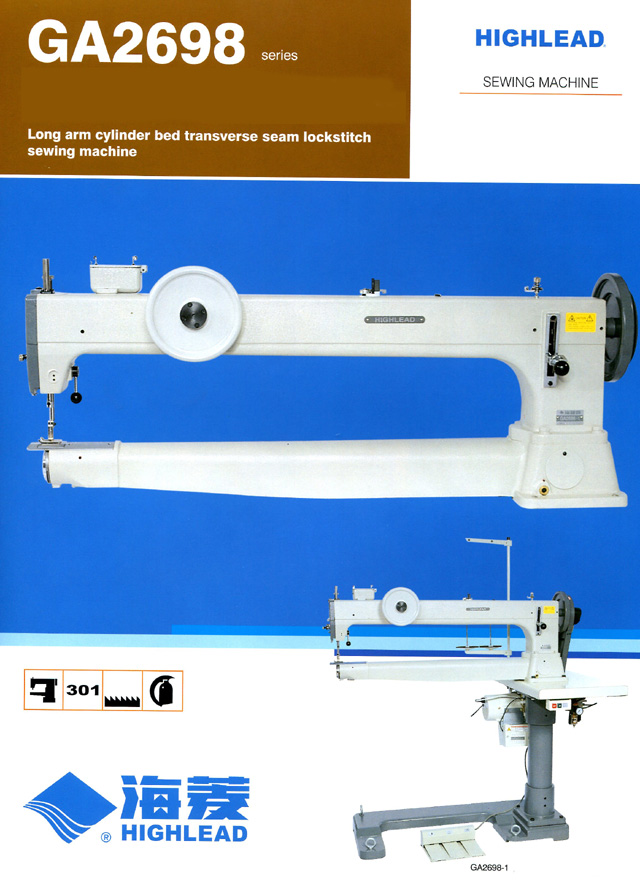

HIGHLEAD GA 2698 Long Arm Transverse Seam Sewing Machine

	MACHINE BRAND:
	MACHINE MODEL:	HIGHLEAD GA 2698
	MACHINE DESCRIPTION:	The Highlead GA2698 is a LONG ARM TRANSVERSE SEAM CYLINDER BED DROP FEEDT SEWING MACHINE with a large SHUTTLE HOOK. Designed for the heaviest-weight fabrics this machine can easily sew multiple layers of leather, canvas, vinyl and heavy synthetic materials. The sewing machines cylinder shaped arm has been extended to give approximately 960mm (37″) clearance. It is fitted with an extra large shuttle hook assembly (204 type) for use with heavy weight & extra heavy weight materials and threads. This special extra long feed up the arm cylinder machine is suited to sewing for example: large tubular shapes golf bags, luggage bags, tents, sails, parachutes, umbrellas, fishing gear, cushions etc. This machine can also be ordered with Pneumatic Auto Reverse, Pneumatic Foot Lift and Puller (GA 2698T) The GA 2698T-2 is a double needle version of the machine featurting a 1/4″ (6.4 mm) needle gauge and only comes with Auto Reverse, Auto Foot Lift and Puller. Contact us at 1-800-228-0001 for price and availability.
	TECHNICAL SPECS:	Highlead GA2698 Cylinder Length: 37 3/4” Presser Foot Lift: 13mm by hand – 20mm by foot lift Bed Size Diameter: 81mm Shuttle Hook: KSP-204N Built-in bobbin winder Stitch Length: 0 to 7.5 mm Needle Bar Stroke: 56mm Thread Take-Up Lever Stroke: 96mm Needle: DYx3 #26 Maximum Sewing Speed: 800 RPM Lubrication: Manual
	MACHINE SETUP:	This machine ships complete and fully assembled – ready to sew upon arrival. It includes: Machine Head Table Top Heavy Duty Stand SERVO Motor Thread Stand LED Light Manuals Extra needles, bobbins, and tools.
	MOTOR & VOLTAGE:	This machine is equiped with a SERVO motor operating on standard 110 Volts power.
	WARRANTY:	1 Year Warranty
	SALE PRICE:	$7,495.00 – Complete and Fully Assembled
	SHIPPING COST:	Commercial / Business Address = $295.00 Home / Residential Address = $395.00
	DELIVERY TIME:	7 to 14 days Delivery Window
	MACHINE BROCHURE:	N/A
	PARTS MANUAL:	Printed copy comes with the machine
