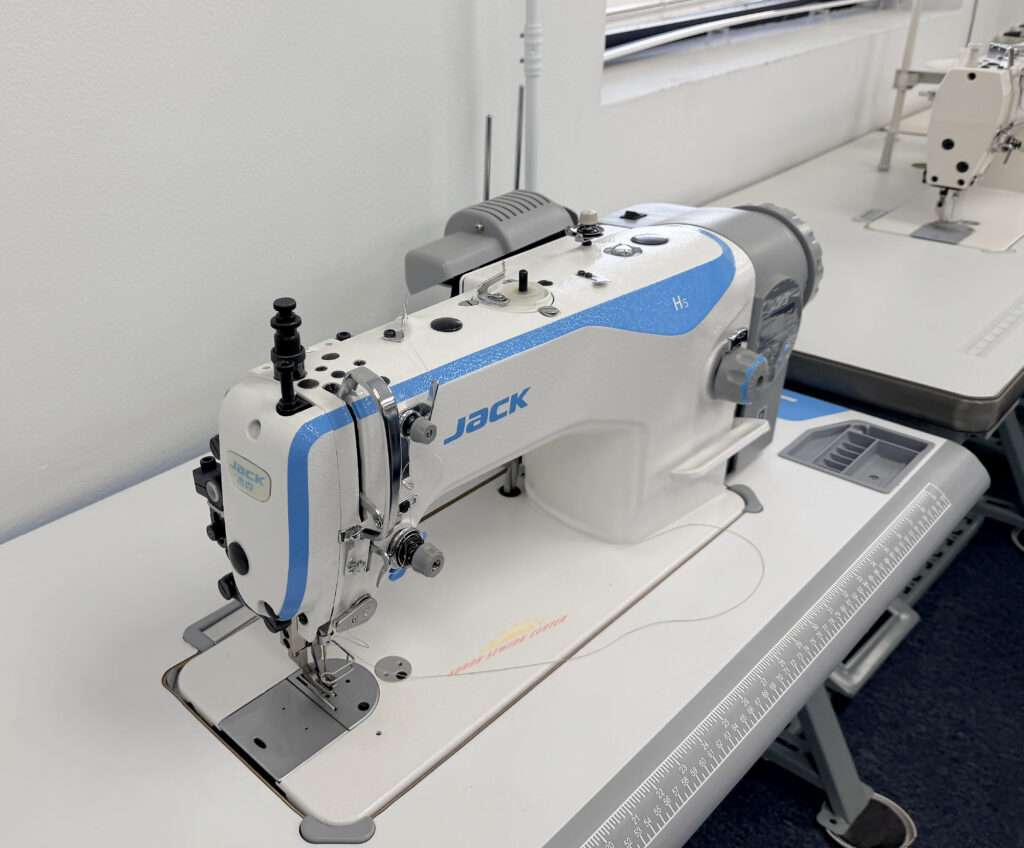

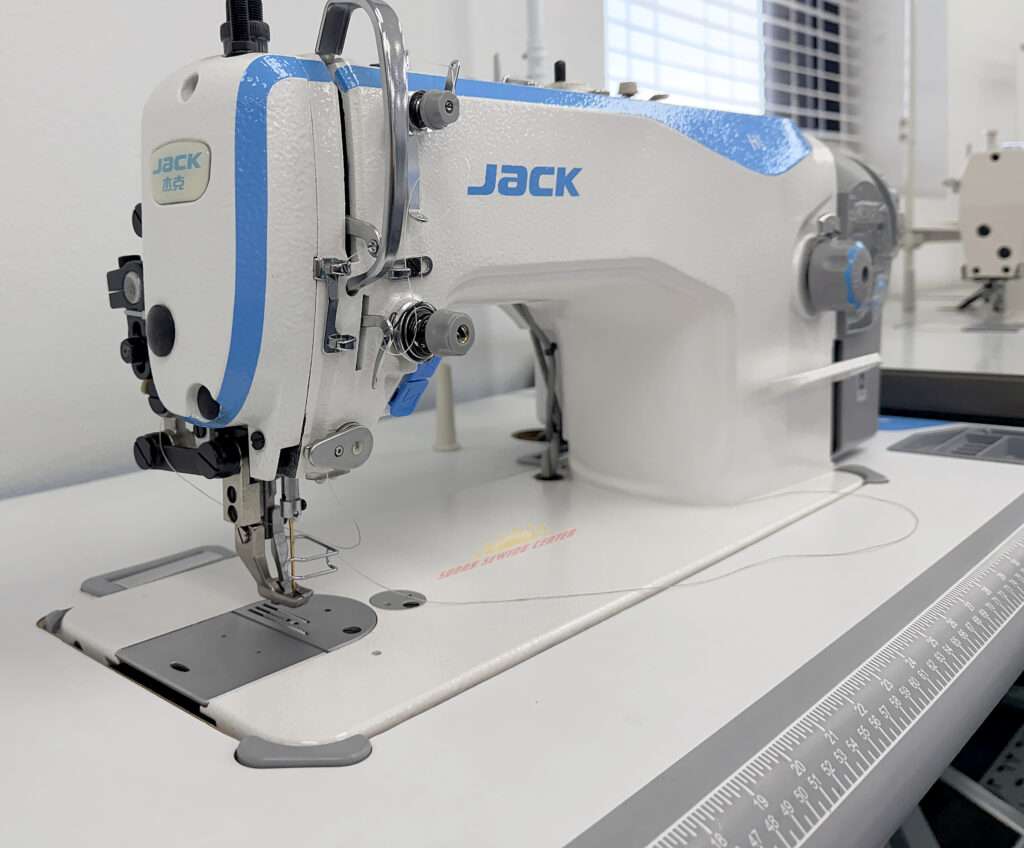

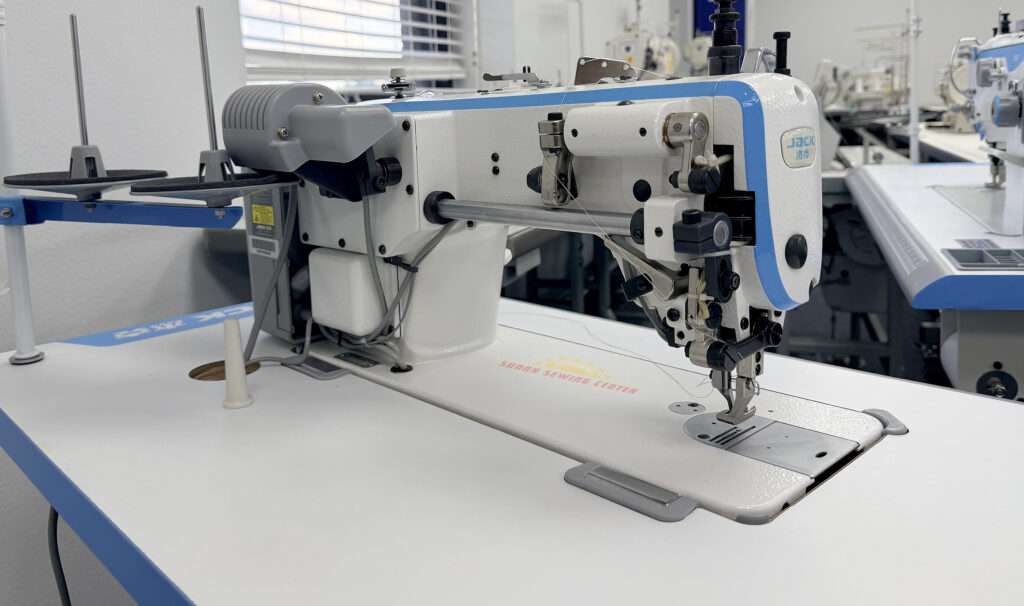

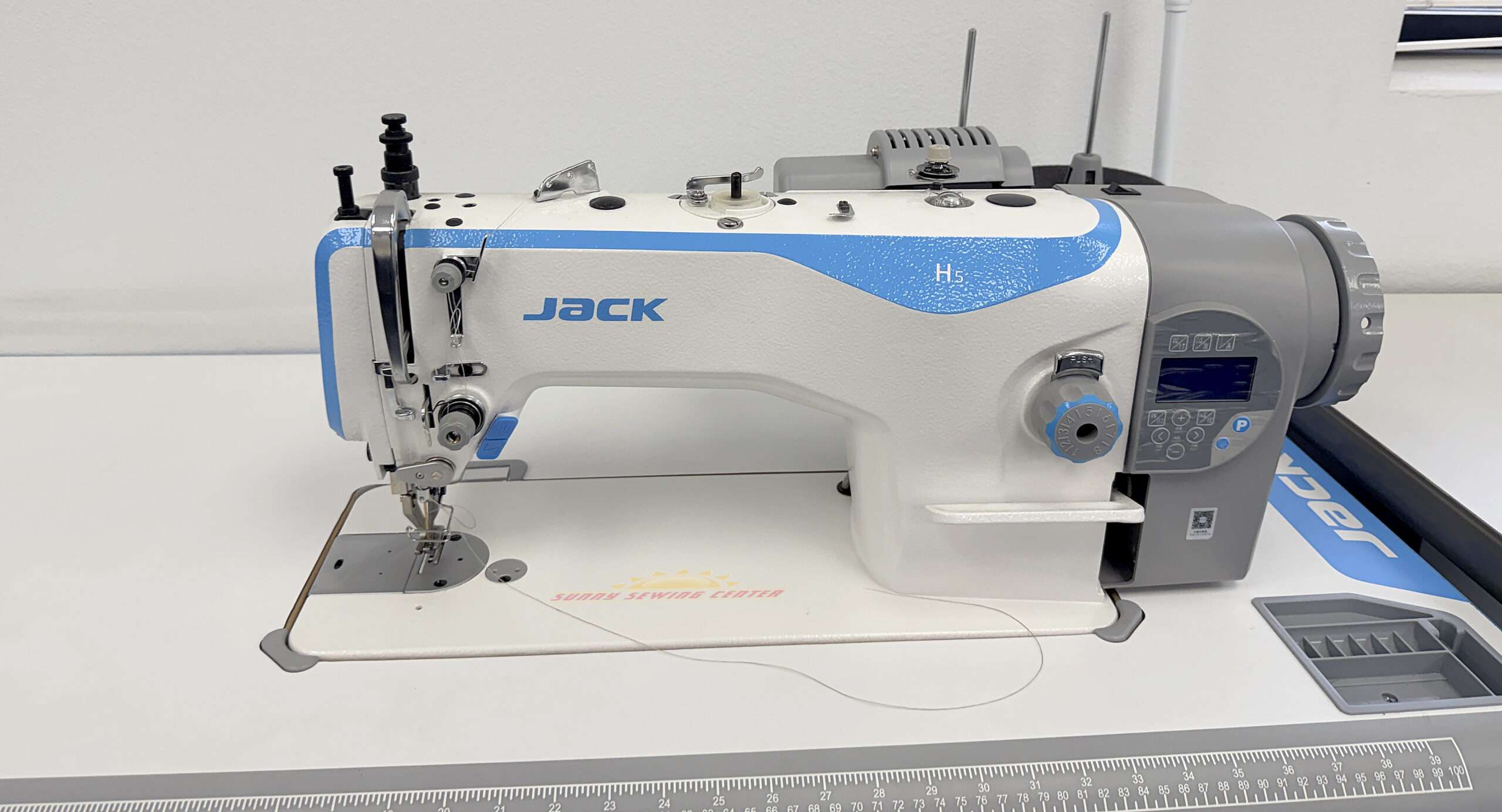

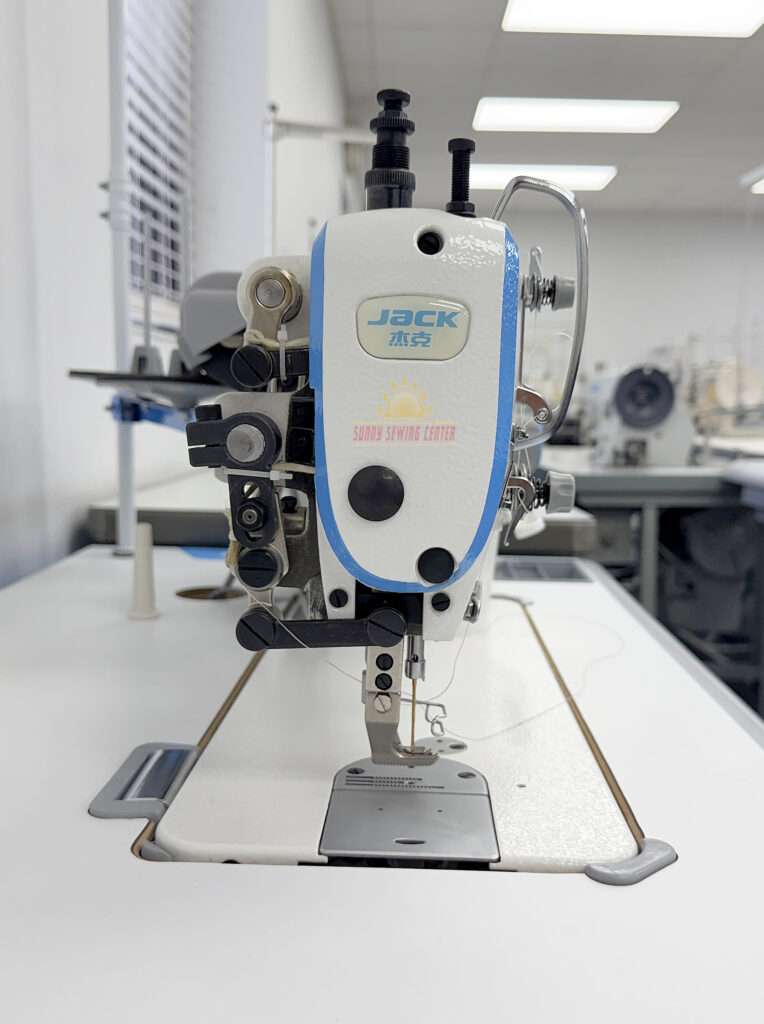

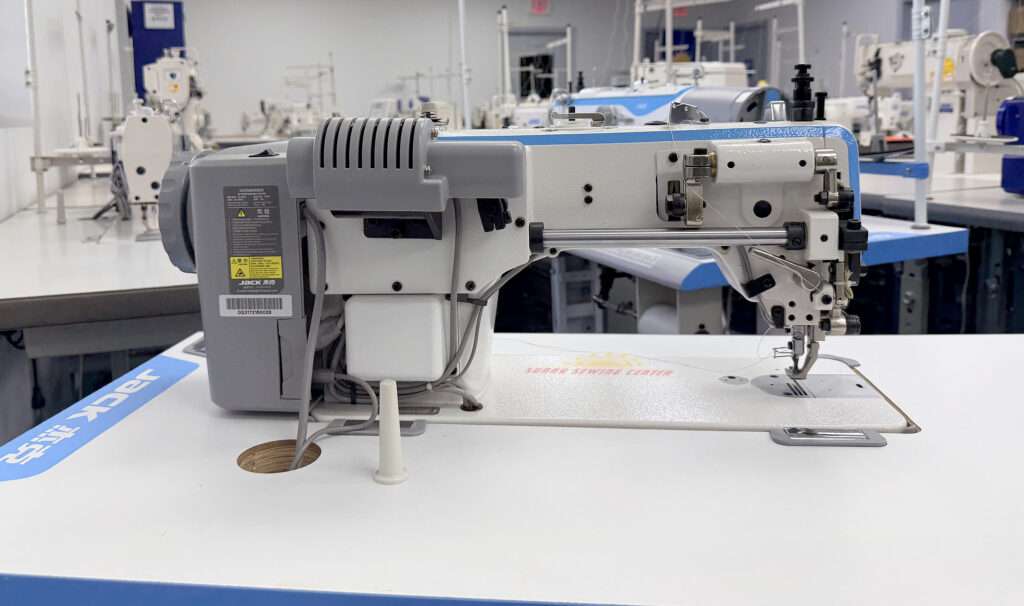

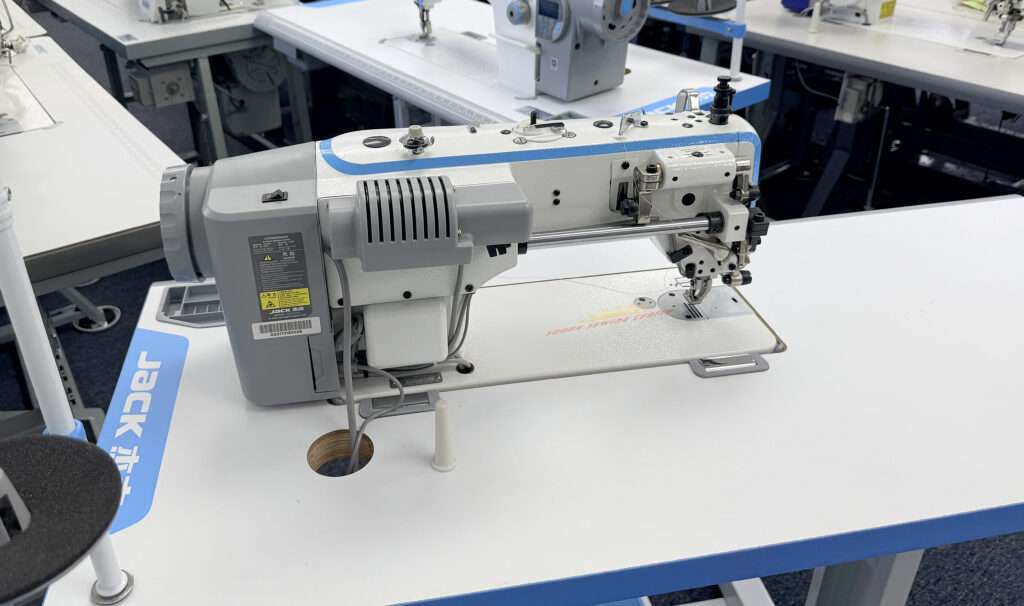

JACK H2

Applications

• Furniture upholstery and cushion covers.
• Leather bags and accessories.
• Canvas and vinyl products.
• Automotive interior sewing.
• Curtains and home furnishings.
• Slippers and similar footwear components.
• Multilayer projects requiring upper and lower material feeding.

Features

• Top-and-bottom feeding: A walking foot and lower feed dogs help move layers together.
• Direct-drive motor: An integrated motor delivers power with reduced noise and vibration.
• Adjustable sewing speed: Electronic controls let operators set a suitable working pace.
• Needle positioning: Selectable stopping position assists with pivoting and handling work.
• Adjustable walking-foot movement: Foot travel can be matched to material thickness.
• Locking stitch-length control: Helps maintain the selected stitch setting.
• Built-in LED lighting: Illuminates the sewing area.

• • Machine type: Industrial flatbed lockstitch machine.
  • Needle count: One.
  • Thread count: Two.
  • Feed system: Top-and-bottom feed with walking foot and lower feed dogs.
  • Motor: Integrated 750 W direct-drive motor.
  • Maximum sewing speed: 2,200 stitches per minute.
  • Maximum stitch length: 8 mm.
  • Needle system: DP × 17.
  • Specified needle sizes: #20–#23.
  • Presser-foot lifting height: 7–16 mm.
  • Needle positioning: Selectable upper or lower stopping position.
  • Lighting: Integrated LED work light.
  • Stitch-length adjustment: Dial with locking mechanism.

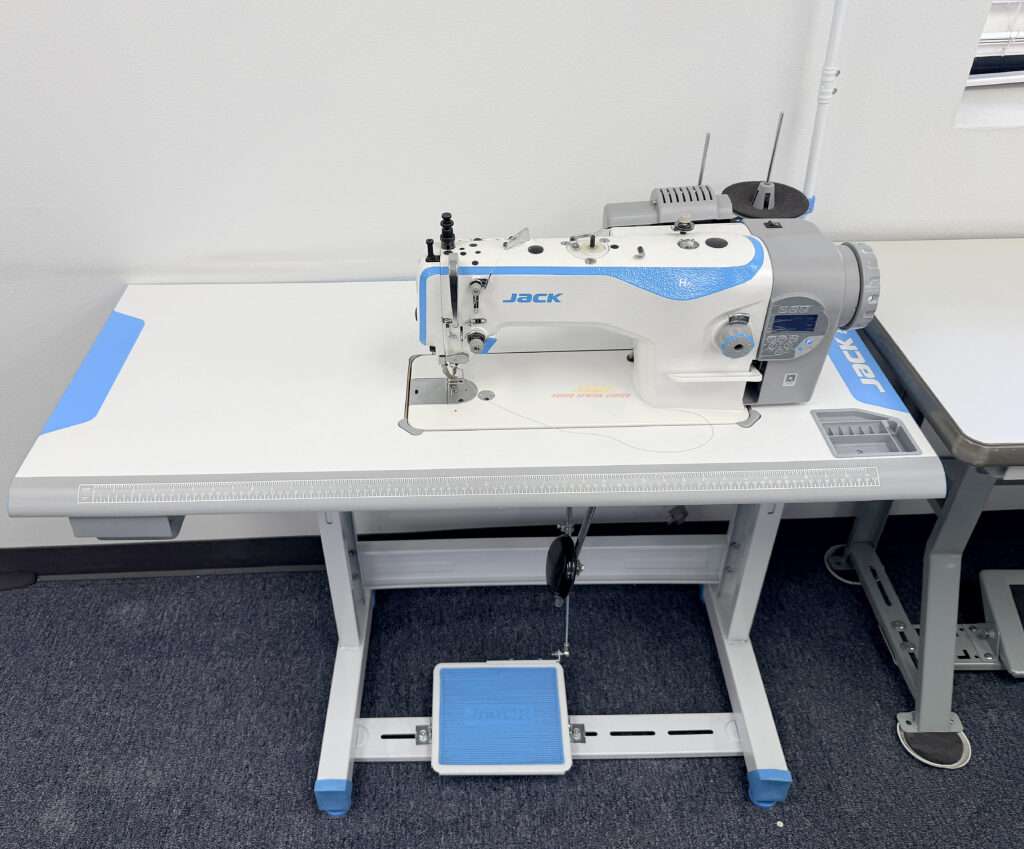

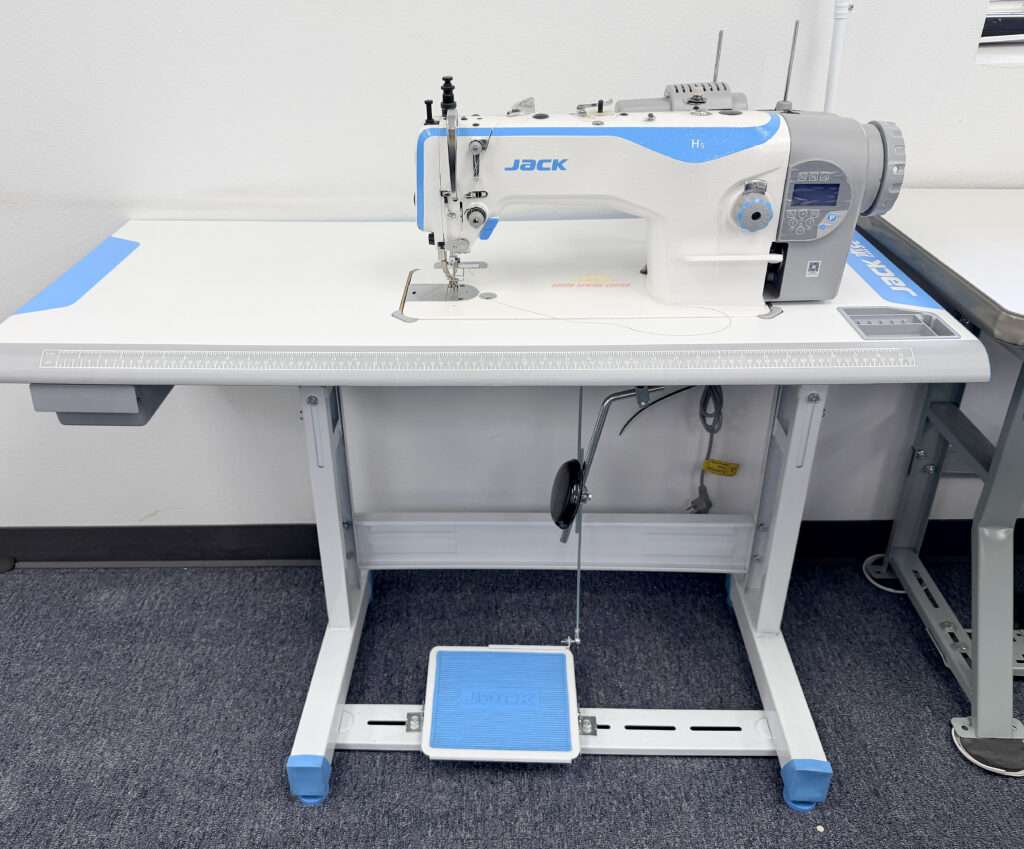

It includes:

• Machine Head
• Tabletop
• Stand
• Integrated Direct Drive Motor
• LED Light
• Thread Stand

Home / Residential Address = $395.00
