THOR GC 1341 Cylinder Arm Walking Foot Sewing Machine for Leather, Upholstery and Heavy Weight Materials

QUICK OVERVIEW

NEW – Single Needle Heavy Weight Cylinder Arm Walking Foot Sewing Machine with Big Hook and Bobbin

$2,695.00

Shipping Options

Please choose a shipping method.

Product price: $2,695.00
Total options:
Order total:

Description

THOR GC-1341 Cylinder Arm Walking Foot Sewing Machine with Big Bobbin, Reverse, Adjustable Stitch Length – Fully Assembled & Ready To Sew



NOW SHIPS WITH THE NEWLY BUNDLED PACKAGE:

  • Cylinder Arm Walking Foot (Triple Compound Feed)
  • Top-Load LARGE Hook and Bobbin
  • 9 Millimeter Max Stitch Length
  • Ideal Thread Sizes TEX-70 to TEX-210
  • Convertible Flat Bed Table with 2-Bolt Quick Mount / Dismount
  • Swing Down Guide (Adjustable Edge Distance)
  • Left Zipper Foot and Regular Foot
  • Caster Stand with Locking Wheels
  • 750 WATT Brushless SERVO Motor with Needle Up/Needle Down Position Synchronizer and Speed Control
  • PACKAGE PRICED COMPLETE AND FULLY ASSEMBLED\









Machine Brand MACHINE BRAND: KINGMAX Industrial Sewing Machines
Sewing Machine Model MACHINE MODEL:

THOR GC-1341

Sewing Machine Description MACHINE DESCRIPTION:

APPLICATIONS:

  • For heavy weight materials such as leather, suedes, vinyl, synthetics, laminated and coated products.
  • Suitable for sewing products such as hand bags, cases, automotive upholstery, covers, sails, tents, awnings, leather braces and many cylindrical products.

FEATURES:

  • ‚The high 16mm presser foot lift enables easy material handling for extra heavy sewing.
  • Large hook and bobbins for extended thread life even with the thickest of threads.
  • Will sew with thread sizes from TEX 69 to TEX 210.
  • Reverse lever.
  • Adjustable stitch length by stitch dial up to 2 1/2 stitches per inch (9mm Max Stitch Length).
  • Stepping Foot Height Adjustment Dial



Techical Specifications TECHNICAL SPECS:
  • APPLICATION:  For Medium to Heavy Weight Materials
  • MAX SEWING SPEED:  2,000 SPM
  • MAX STITCH LENGTH:  9 mm Forward/Reverse
  • NEEDLE BAR STROKE:  36mm
  • FOOT LIFT:  16mm by Knee, 9mm by Hand
  • HOOK:  LARGE CAPACITY 1.6 Fold Hook
  • NEEDLE:  135×17
  • THREAD:  TEX 70 to TEX 210





Sewing Machine Setup MACHINE SETUP: This machine ships complete and fully assembled – ready to sew upon arrival.

It includes:

  • Machine Head
  • Table Top
  • Heavy Duty Stand
  • SERVO Motor
  • LED Light
  • Manuals
  • Extra needles, bobbins, and tools.



Sewing Machine Voltage MOTOR & VOLTAGE: This machine is equiped with a SERVO motor operating on standard 110 Volts power.
Sewing Machine Warranty WARRANTY: 1 Year Warranty
Sewing Machine Sale Price SALE PRICE: $2,695.00
Sewing Machine Shipping Cost SHIPPING COST: Commercial / Business Address = $280.00

Home / Residential Address = $340.00

Delivery Time DELIVERY TIME: IN STOCK…7 to 10 Days Delivery Window
icon pdf MACHINE BROCHURE: N/A
Sewing Machine Parts Manual PARTS & INSTRUCTION MANUAL: CLICK HERE TO DOWNLOAD

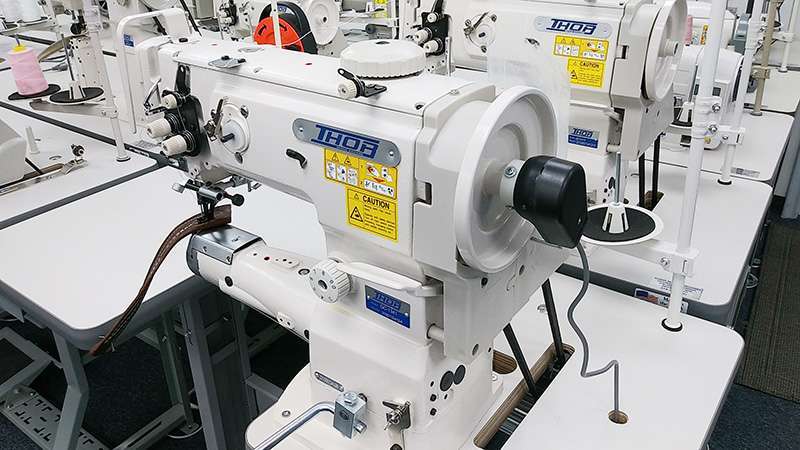

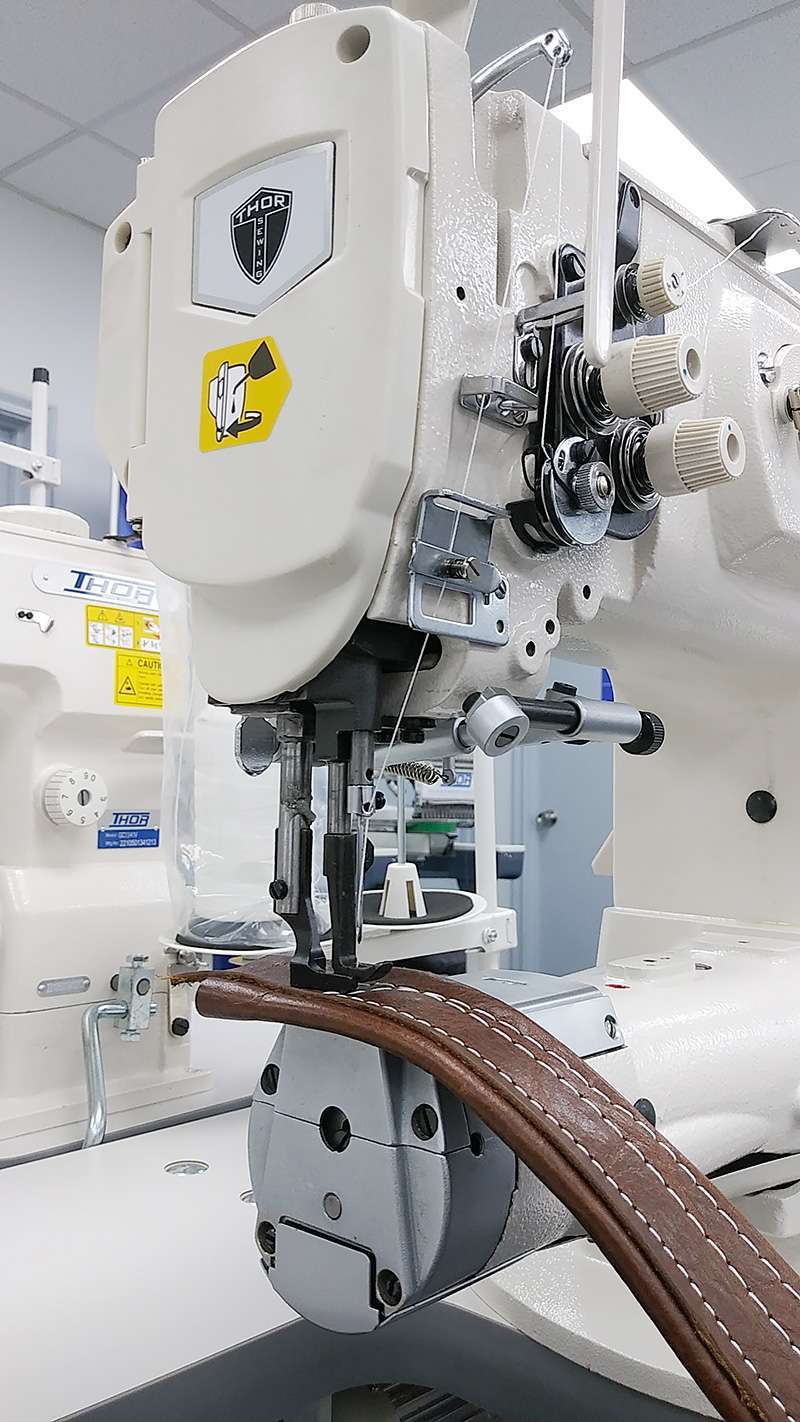

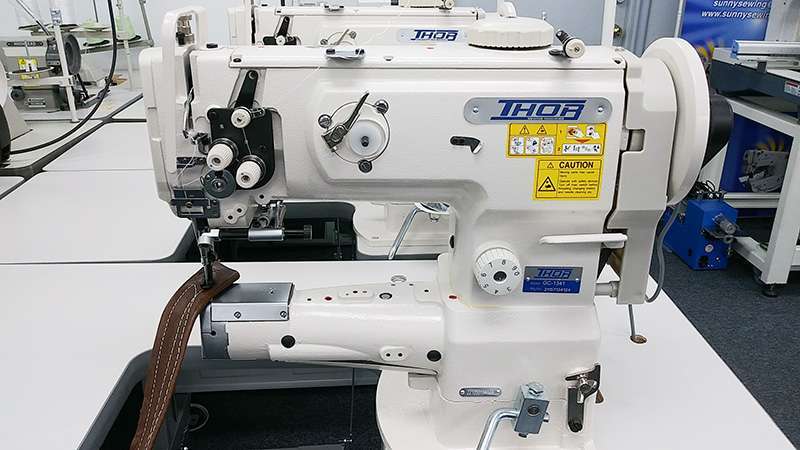

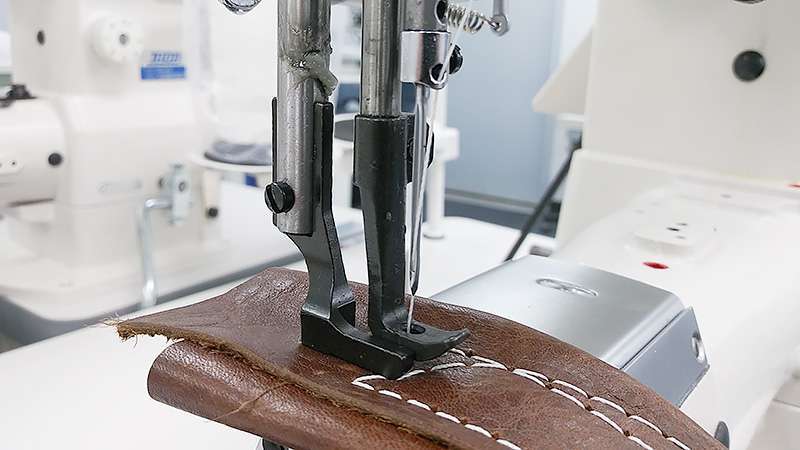

THOR GC-1341 Cylinder Arm Walking Foot Sewing Machine

THOR GC-1341 Cylinder Arm Walking Foot Sewing Machine

THOR GC-1341 Cylinder Arm Walking Foot Sewing Machine

THOR GC-1341 Cylinder Arm Walking Foot Sewing Machine

THOR GC-1341 Cylinder Arm Walking Foot Sewing Machine

THOR GC-1341 Cylinder Arm Walking Foot Sewing Machine

THOR GC-1341 Cylinder Arm Walking Foot Sewing Machine

THOR GC-1341 Cylinder Arm Walking Foot Sewing Machine

THOR GC-1341 Cylinder Arm Walking Foot Sewing Machine

THOR GC-1341 Cylinder Arm Walking Foot Sewing Machine

THOR GC-1341 Cylinder Arm Walking Foot Sewing Machine

THOR GC-1341 Cylinder Arm Walking Foot Sewing Machine

THOR GC-1341 Cylinder Arm Walking Foot Sewing Machine

THOR GC-1341 Cylinder Arm Walking Foot Sewing Machine

THOR GC-1341 Cylinder Arm Walking Foot Sewing Machine

THOR GC-1341 Cylinder Arm Walking Foot Sewing Machine

THOR GC-1341 Cylinder Arm Walking Foot Sewing Machine

THOR GC-1341 Cylinder Arm Walking Foot Sewing Machine

THOR GC-1341 Cylinder Arm Walking Foot Sewing Machine

THOR GC-1341 Cylinder Arm Walking Foot Sewing Machine

THOR GC-1341 Cylinder Arm Walking Foot Sewing Machine

Additional information

Weight 9999 oz
