Description

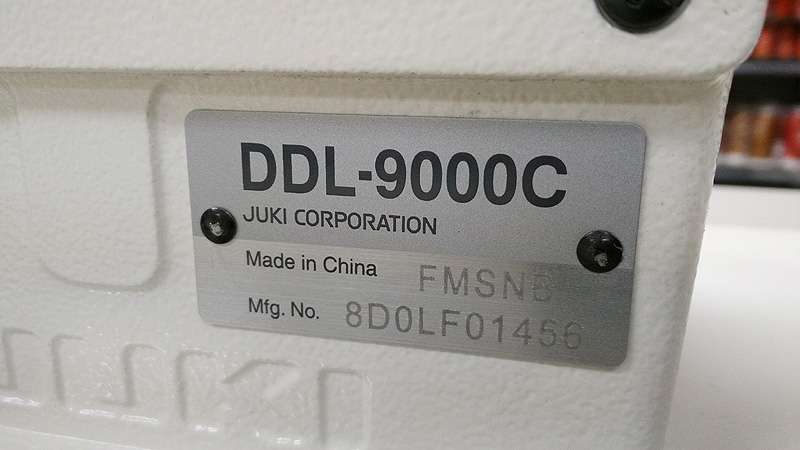

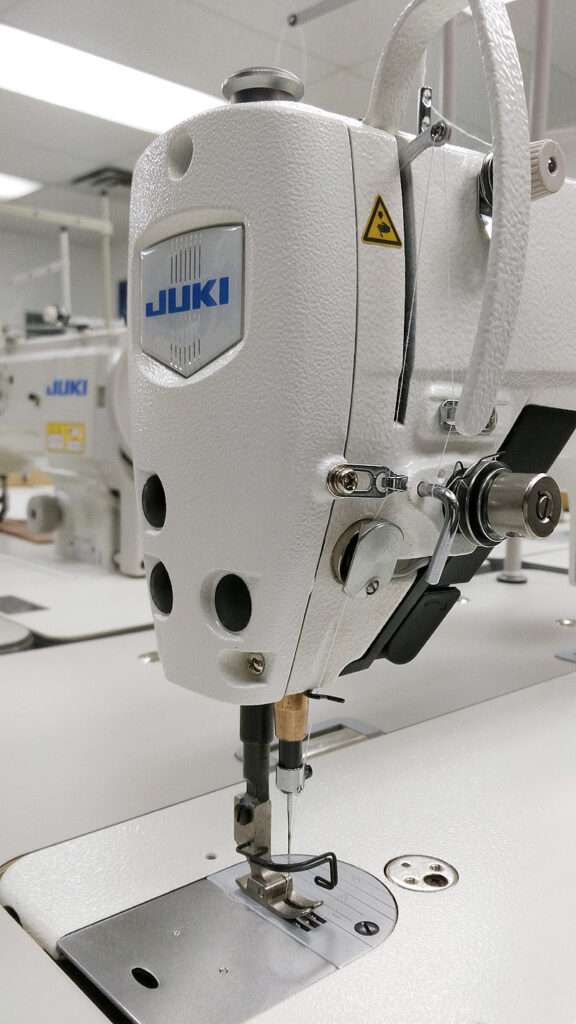

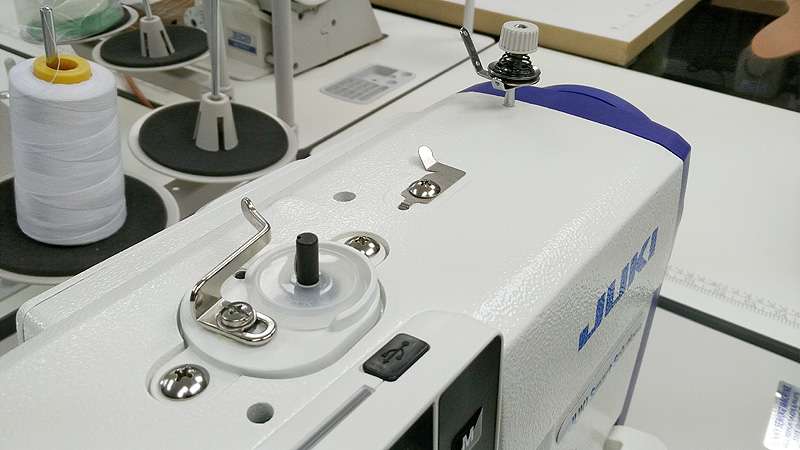

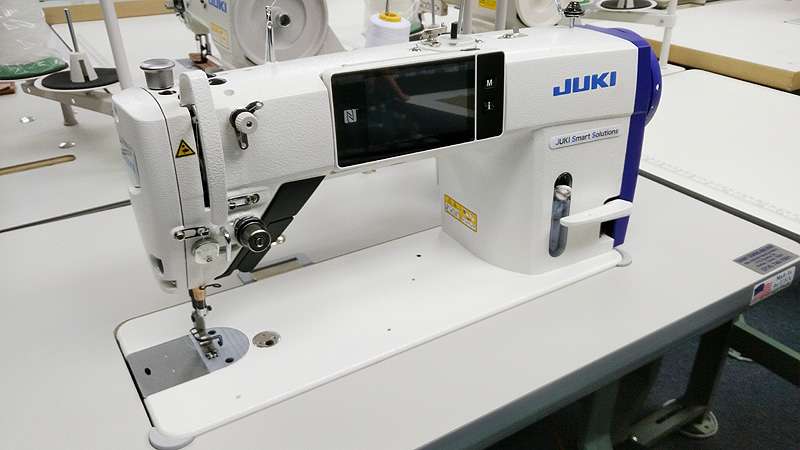

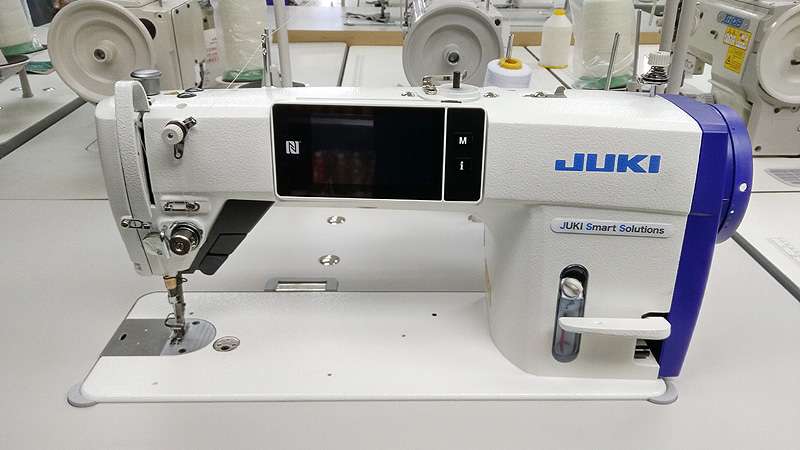

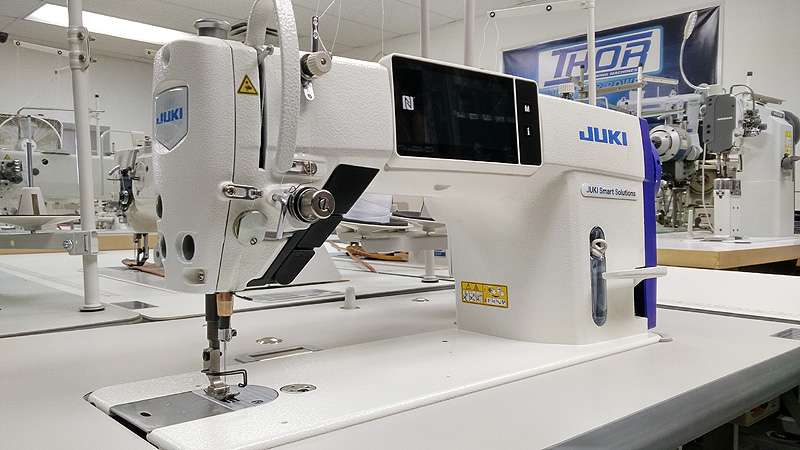

Juki DDL-9000C-FMS Full Digital Automatic Single Needle Lockstitch Sewing Machine

On Sale for $1,995 – Regular $2,195

In Stock

• Full Digital Controls
• Digital Thread Tension Control
• Digital Foot Pressure Control
• Sewing Parameter Setting, Saving and Recall
• Automatic Thread Trimmer
• Automatic Back Tack Settings
• Automatic Foot Lift

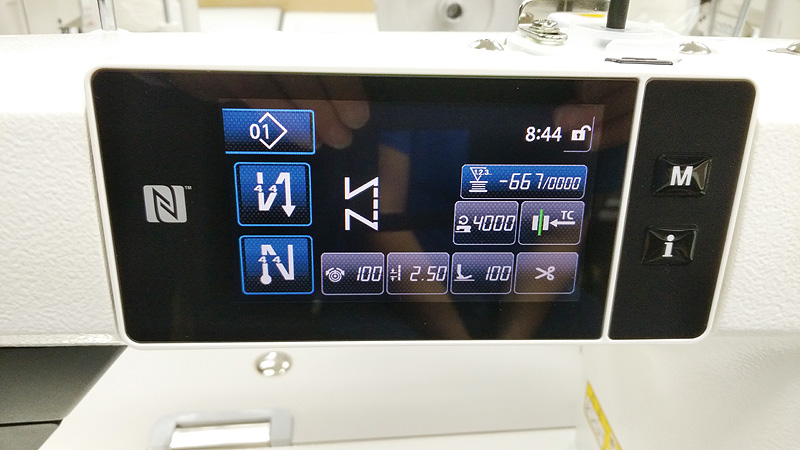

• 4.3″ Full Color Touch-Screen Digital Control Panel

The change is driven by digitalization. Until recently, sewing machines have been adjusted by human operators based on personal hunches and experience. Now, with JUKI’s digital sewing system DDL-9000C, sewing machine adjustments are fully digitalized. The settings can be reproduced with total accuracy to perfectly suit the materials being sewn.

Needle thread tension which matches sewing conditions given can be set on the operation panel and stored in memory. The needle thread tension adjustment needs experience. However, for this sewing machine, thread tension data stored in memory is reproducible, thereby reducing the setup time when the product to be sewn is changed.Exampl e : Needle-thread active tension demonstrates its effectiveness in the topstitching process. For welting shoulders of a difficult-to-sew material, uniform stitches can be produced continuously by appropriately changing the sewing conditions even if the right and left material fabric differ in texture grain.

Max. Sewing Speed: 5,000 Stitches per Minute

Max. Stitch Length: 5 mm

Needle Bar Stroke: 30.7 mm

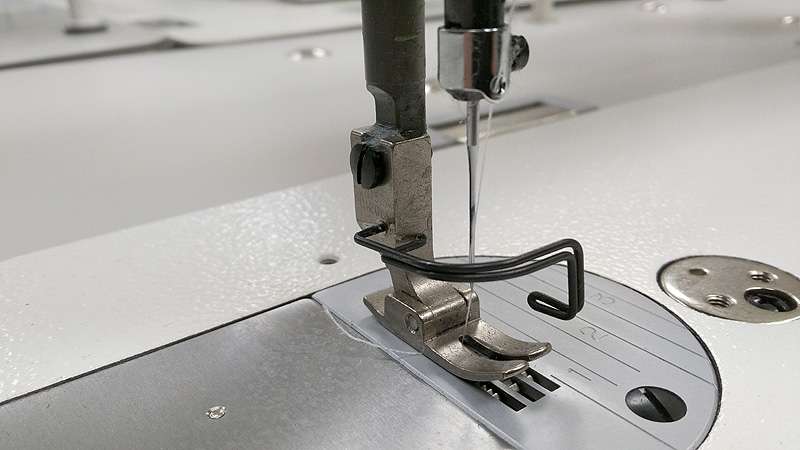

Lift of the Presser Foot: by Hand 5.5 mm

Lift of the Presser Foot: Auto 15 mm

Needle: DBx1 (#11) #9 to #18 Capable

Feed Dog: 4-row

Hook: Automatic-Lubricating Full-Rotary Hook

Lubrication: Automatic

Lubricating Oil: Juki Machine Oil 7 (Equivalent to ISO VG7)

Control Box: Integrated

Power Requirement: Single-Phase 100~240V, 3-phase 200~240V

Power Consumption: 520VA

Total Shipping Weight – Assembled 240 lbs

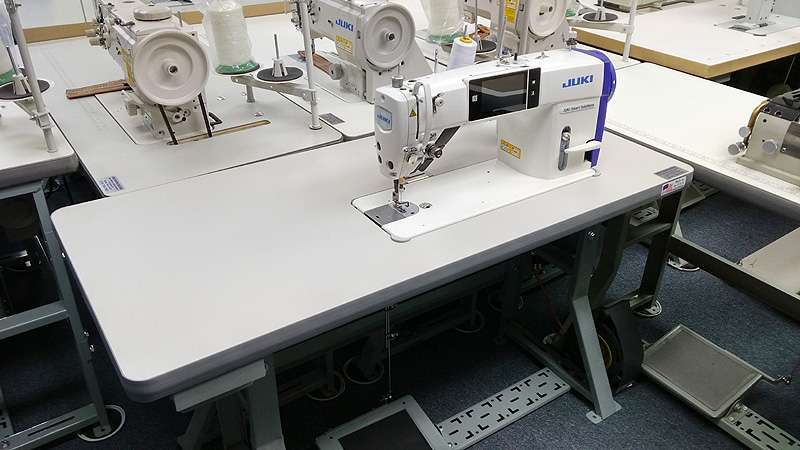

MACHINE SETUP:

This machine ships complete and fully assembled – ready to sew upon arrival.

It includes:

Machine Head

Table Top

Heavy Duty Stand

JUKI Motor

LED Light

Thread Stand

Manuals

Extra needles, bobbins, and tools.

MOTOR & VOLTAGE:

This machine is equiped with a Genuine JUKI motor operating on standard 110 Volts power.

WARRANTY:

1 Year Warranty
